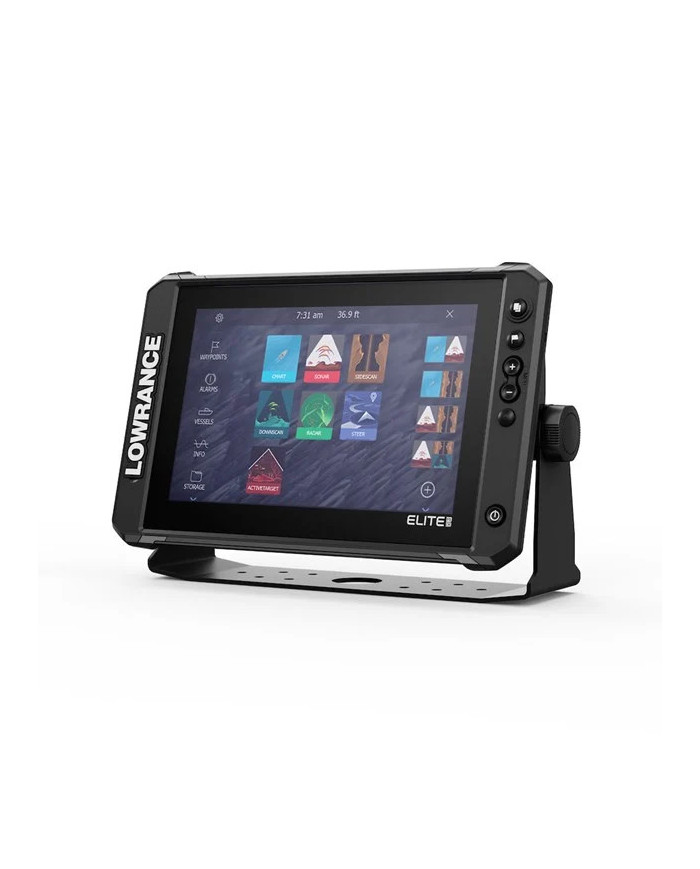

Lowrance Elite FS 12 - with Active Imaging 3-in-1 Transducer

Specifications

Display

Backlight Color: Pure White LED

Display Resolution: 1280 x800

Display Size: 12 inches

Screen Brightness: >1200 nits

Viewing Angles: 85° top/bottom & 85° left/right

Connectivity:

Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic

Ethernet Port: 1 x 100Mbit

Wi Fi:  Internal 802.11b/g

/nN2K PG NsReceive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration

NMEA 0183 Sentences supported: None

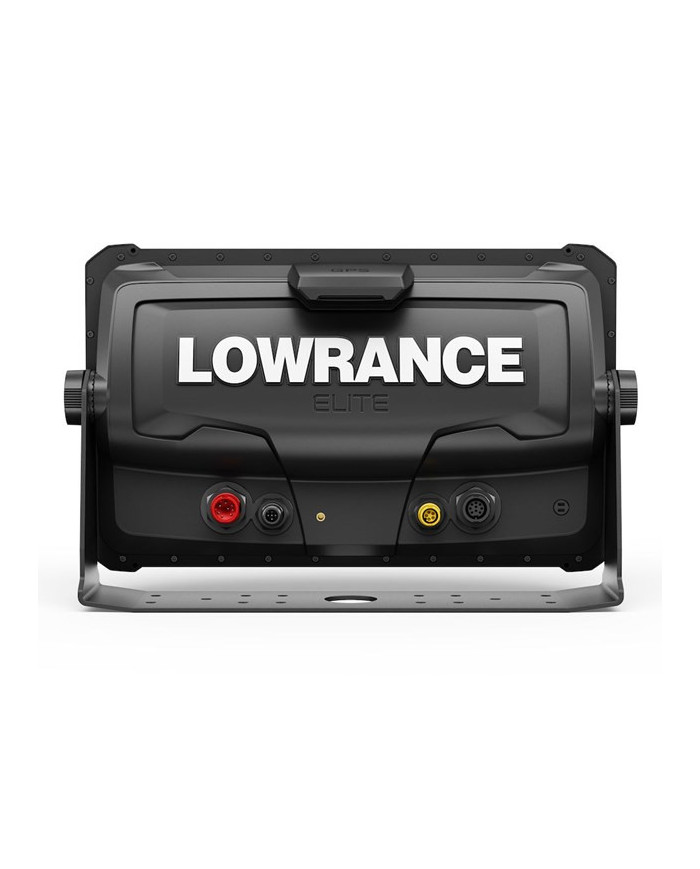

NMEA 2000 Connectivity: 1x Micro-C

PC Connectivity: None

SD Card Storage1 micro SD card up to 32GBVideoNone

Cartography

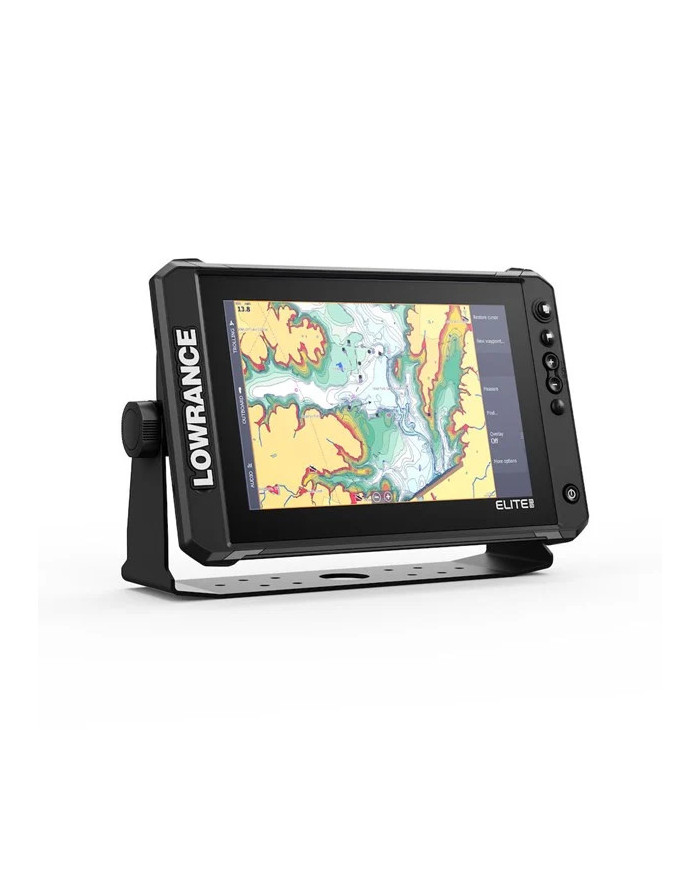

Charts supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners & BassCoza Complimentary Satellite Imagery Charts

Electrical

Power Consumption:

Max 3 A @ 13.8VDC with backlight on

Min: 28 W 2.5A @ 13.8VDC with backlight on

Power Consumption typical: 2.5A @ 13.8VDC with backlight on

Recommended Fuse Rating: 3A

Supply Voltage: 12v DC (10.8-17 VDC)

Environment

Humidity: 60°C, 95% relative humidity (RH) for 18 hours

Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )

Shock Vibration: 100,000 cycles of 20 GStorage

Temperature Range: 4°F to 140°F (-20°C to 60°C )

Waterproof rating: IPX7 with card door closed

GPS

Correction: DGPSWAASMSASEGNOSGLONASSGPS

Receiver Channels: 16

Position Accuracy: 20m

RMSTime to First Fix30s

Update rate10 Hz

MFDAISAIS Chart overlay. Target vessel details.AutopilotOutboard PilotGhost Trolling MotorRecon Trolling motor (software dependent)MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint GatewayCartography includedC-MAP Contour + (US models)Navionics basemap (AMER, AUS/NZ and ROW models)Digital SwitchingNoneGPS10 Hz Internal high-sensitivity WAAS + EGNOS + MSASInternal StorageNoneMultimediaSonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio productsSonar CompatibilityIntegrated: CHIRP BroadbandActive Imaging DownScan, Active Imaging SideScan, ActiveImageing HD with an S3100Compatible with:S3100SonarHubStructureScanStructurreScan 3DLiveSightActive TargetWaypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails with up to 10,000 points per trailWeatherSiriusXM via WM-4 (USA only)

Physical

Compass Safe: 2.1 ft (0.65 m

Mounting Type: Gimbal Bracket or Dash Flush MountWeight: 3.66 lbs (1.66 kg)

Other

Interface: Multi-Touch Touchscreen

Zoom +/-MOB = (+/- combined)

Pages / Waypoint / Light/ Power

Language Pack:

Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano.

Warranty:

Lowrance South Africa 3 Year Carry In Limited Warranty

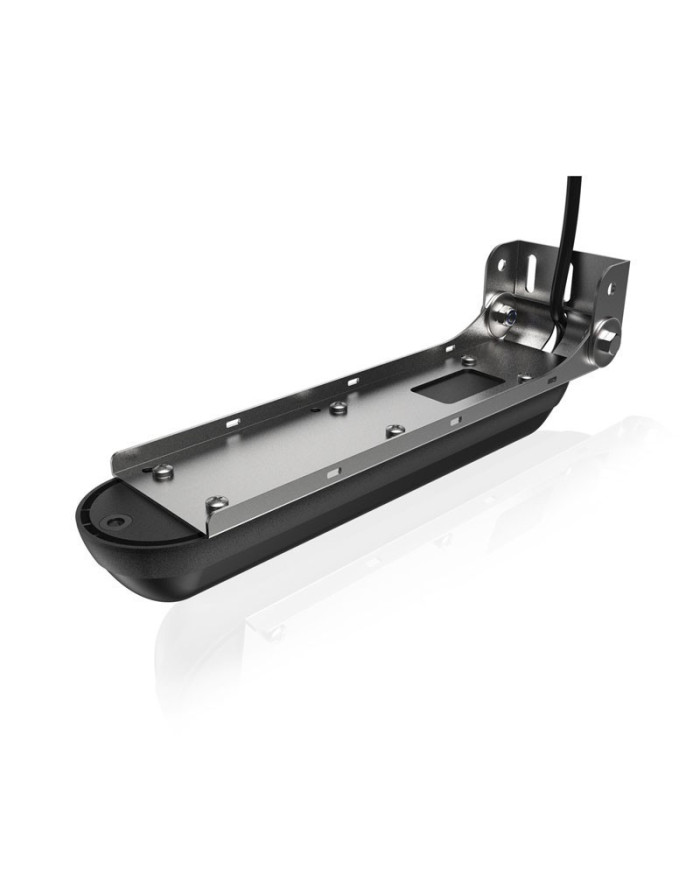

Active Imaging 3-in-1 Transom Mount Transducer

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Key Features

More refined detail and better range than any other imaging technology

Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan

Easier target identification with FishReveal™ Smart Target View

Active Imaging 3D transducer with Side and Down available

Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies

Compatible with Lowrance Elite Ti2, Elite FS, HDS Carbon, HDS LIVE, HDS PRO, Simrad NSS evo3 and GO series displays

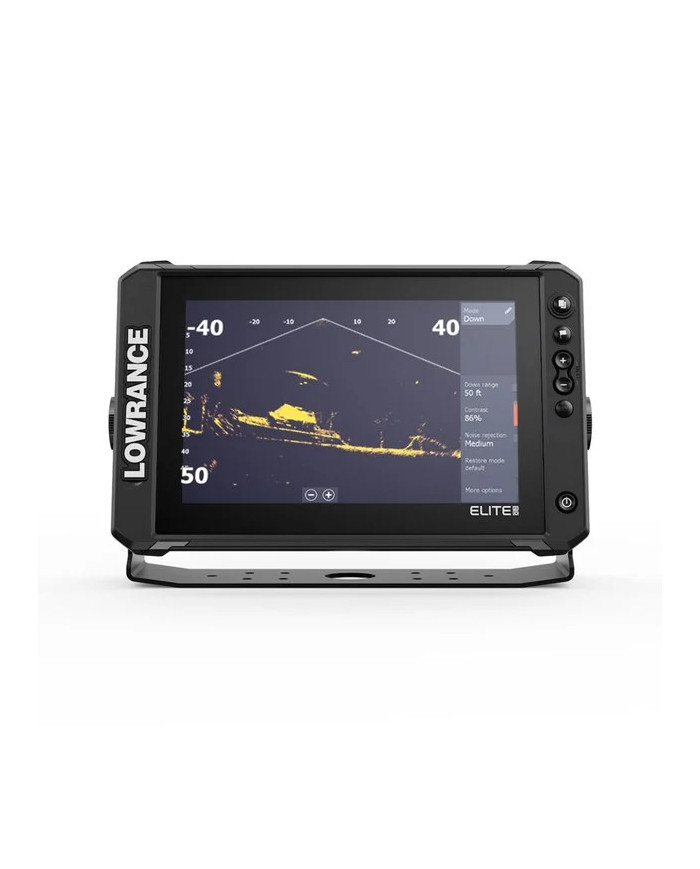

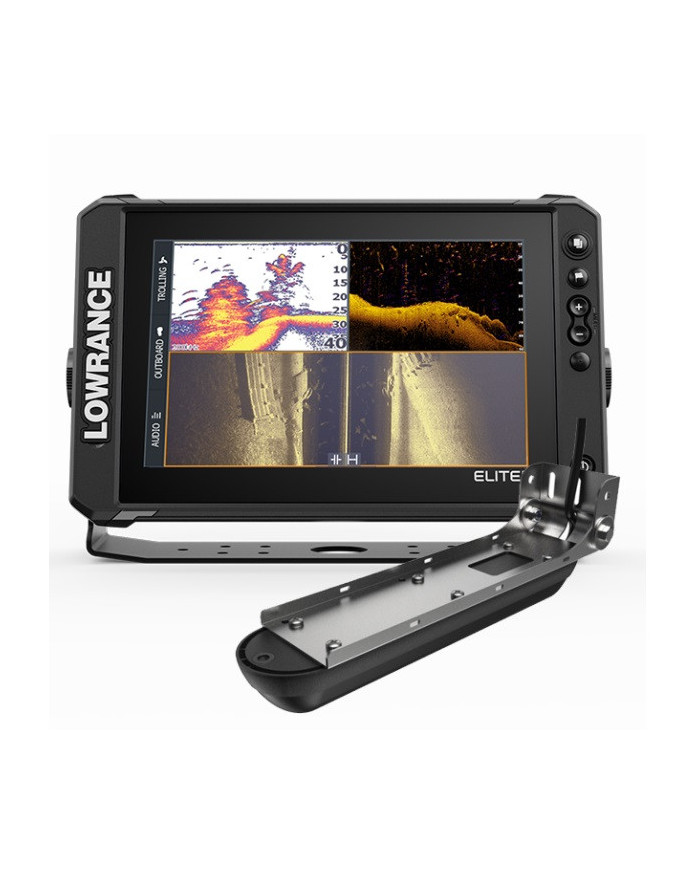

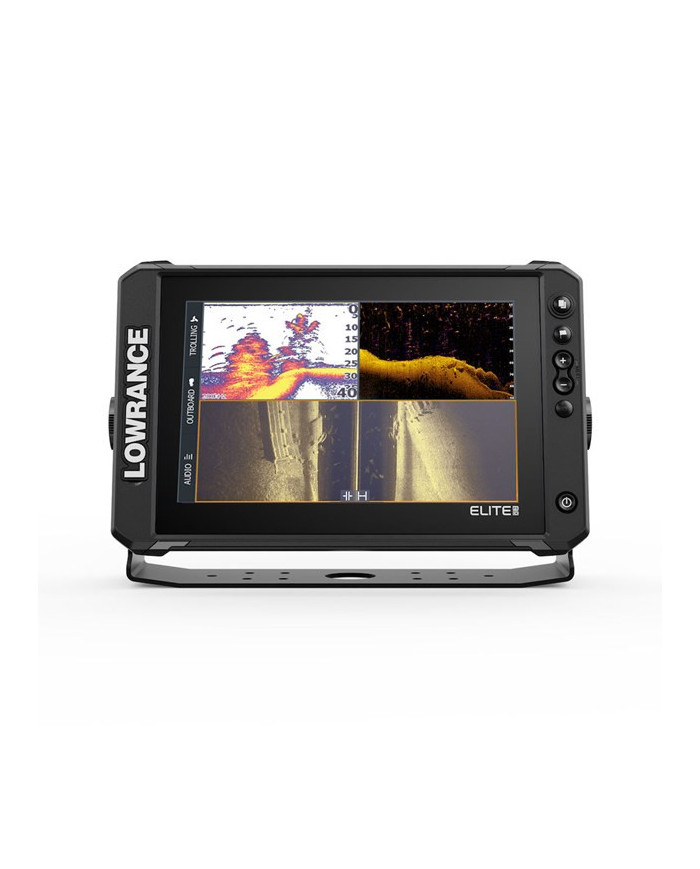

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Attributes

MPN:  000-14489-001

UPC: 9420024172773

Brand: Lowrance

Country of Manufacture: Mexico

Physical Dimensions: 67mmW x 79mmH x 280mmL

Transducer Cable Length: 7m

Frequency (KHz) & Beam Angle (°)

200KHz, 455/800KHz, 83KHz, High CHIRP

Mounting Options: Transom

Plug: 9 Pin Navico

Chirp Sonar: Yes

Down Imaging: Built-in

Useable Depth Down Imaging: 65m+

Sonar Useable Depth (T/D & Frequency Dependant): 70m+

Side Imaging: Built-in

Water Temperature: Yes

Technical specifications Active Imaging 3-in-1 transducer

Environmental Operating temperature -15°C to +55°C (+5°F to +131°F)

Storage temperature -30°C to +70°C (-22°F to +158°F)

Cable length 7.6 m (25 ft) or 1.8 m (6 ft)

Mounting options Transom, flush step, and jackplate mounting

Number of pins 9 pins

Transducer Output Traditional, SideScan imaging, DownScan imaging and temperature Frequency

• Traditional: 200 kHz/High Chirp, 83 kHz/Medium Chirp

• SideScan: 455 kHz, 800 kHz

Max depth • Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp

• DownScan: 91 m (300 ft)

• SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) side range at 800 kHz Operating speed

• Traditional: 48 knots (55 mph) • DownScan and SideScan: 9 knots (10 mph)
