Victron BlueSolar MPPT 75/10 Retail Solar Charge Controller 12V/24V
R1,021.20
R684.10
Tax included
Victron BlueSolar MPPT 75/10 Retail
Solar charge controller
75VDC / 10A
12/24 Battery
CONTACT US FOR QUANTITY DISCOUNTS / INSTALLER / RESELLER PRICING
info@createenergy.co.za / 0118880410
Victron BlueSolar MPPT 75/10 Retail
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Models:12/24/48 Volt
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Maximum Power Point Tracking
(MPPT)
Upper curve:
Output current (I) of a solar panel as function of output voltage (V).
The Maximum Power Point (MPP) is the point Pmax along the curve where the product I x V reaches its peak.
The Maximum Power Point (MPP) is the point Pmax along the curve where the product I x V reaches its peak.
Lower curve:
Output power P = I x V as function of output voltage.
When using a PWM (not MPPT) controller the output voltage of the solar panel will be nearly equal to the voltage of the battery, and will be lower than Vmp.
When using a PWM (not MPPT) controller the output voltage of the solar panel will be nearly equal to the voltage of the battery, and will be lower than Vmp.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Load output
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: BlueSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
BlueSolar and SmartSolar MPPT Charge Controllers Overview
Feature highlights common to all models
• Ultra-fast Maximum Power Point Tracking (MPPT).
• Advanced Maximum Power Point Detection in case of partial shading conditions.
• Outstanding conversion efficiency.
• Natural convection cooling.
• Automatic battery voltage recognition.
• Flexible charge algorithm.
• Over temperature protection and power derating when temperature is high.
• Advanced Maximum Power Point Detection in case of partial shading conditions.
• Outstanding conversion efficiency.
• Natural convection cooling.
• Automatic battery voltage recognition.
• Flexible charge algorithm.
• Over temperature protection and power derating when temperature is high.
Sizing options:
• Suitable for a variety of battery voltages. Most models connect to 12, 24, and 48V batteries, some only
connect to 12 and 24V batteries, or only to 48V batteries.
• Charge currents rating from 10A all the way up to 100A.
• Maximum PV array Voc voltages ranging from 75V up to 250V.
• Multiple chargers can be used in parallel, for large systems we recommend to use the models with a
VE.Can communication port.
connect to 12 and 24V batteries, or only to 48V batteries.
• Charge currents rating from 10A all the way up to 100A.
• Maximum PV array Voc voltages ranging from 75V up to 250V.
• Multiple chargers can be used in parallel, for large systems we recommend to use the models with a
VE.Can communication port.
PV terminal options:
• TR - one positive and one negative screw terminal.
• MC4 - 3 pairs of paralleled MC4 connectors.
• MC4 - 3 pairs of paralleled MC4 connectors.
Bluetooth options:
• SmartSolar models have Bluetooth.
• BlueSolar models do not have Bluetooth. They can be retrofitted to have Bluetooth by connecting the
VE.Direct Bluetooth Smart dongle. Advantage: the product is not Bluetooth accessible when the
dongle is not connected. Note that on the SmartSolar models, Bluetooth can be disabled.
• BlueSolar models do not have Bluetooth. They can be retrofitted to have Bluetooth by connecting the
VE.Direct Bluetooth Smart dongle. Advantage: the product is not Bluetooth accessible when the
dongle is not connected. Note that on the SmartSolar models, Bluetooth can be disabled.
Display options:
• VictronConnect Application. Connects via Bluetooth or via the VE.Direct - USB interface
• MPPT Control. Connects to all models via a VE.Direct cable
• SmartSolar Control Display. Plugs directly into the housing of the larger models
• GX device
• VRM website (GX monitoring device needed)
• MPPT Control. Connects to all models via a VE.Direct cable
• SmartSolar Control Display. Plugs directly into the housing of the larger models
• GX device
• VRM website (GX monitoring device needed)
Communication ports:
• VE.Direct - all models
• VE.Direct and VE.Can - limited models. VE.Can is especially suitable for systems with multiple solar
chargers. All units are simply “daisy chained” to each other with a single RJ45 cable between each unit
and also between the las unit in the chain and the a GX monitoring device.
• VE.Direct and VE.Can - limited models. VE.Can is especially suitable for systems with multiple solar
chargers. All units are simply “daisy chained” to each other with a single RJ45 cable between each unit
and also between the las unit in the chain and the a GX monitoring device.
Temperature sensor options:
• Internally (all models).
• Externally via the Smart Battery Sense (only SmartSolar models).
• Externally via the Smart Battery Sense (only SmartSolar models).
Load output options:
• Physical output - On the 10, 15 and 20A models.
• Virtual output - via VE.Direct TX digital output cable and the BatteryProtect or a solid-state relay.
• Virtual output - via VE.Direct TX digital output cable and the BatteryProtect or a solid-state relay.
Remotely enabling and disabling the charger:
• All larger units feature the Victron standard remote on/off terminals. All models that don’t feature an
onboard Remote on/off terminal can be remotely controlled by using the VE.Direct non inverting
remote on/off cable – ASS030550310. Note that this prohibits using the VE.Direct port for anything
else.
onboard Remote on/off terminal can be remotely controlled by using the VE.Direct non inverting
remote on/off cable – ASS030550310. Note that this prohibits using the VE.Direct port for anything
else.
Firmware update options:
• Local updates via the VictronConnect Application (via Bluetooth or USB-VE.Direct interface)
• Remote updates via VRM website and a GX device
• Remote updates via VRM website and a GX device
Optional accessories:
• VictronConnect Application (free download)

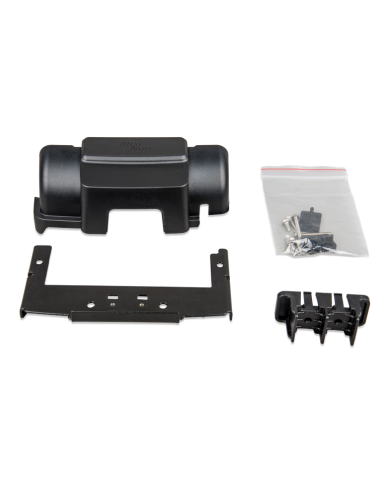

• Wire boxes, to cover and protect the terminals. See table on page 2 for wire box types
• Control and display panels: MPPT control or SmartSolar control)
• GX monitoring device (CCGX, Venus GX, Octo GX or Cerbo GX)
• Data cables: VE.Direct cable, RJ45 Cable (VE.Can models only), USB-VE.Direct interface
• External control cables: TX cable, non-inverting cable
• Bluetooth dongle (for non-smart models)
• Wire boxes, to cover and protect the terminals. See table on page 2 for wire box types
• Control and display panels: MPPT control or SmartSolar control)
• GX monitoring device (CCGX, Venus GX, Octo GX or Cerbo GX)
• Data cables: VE.Direct cable, RJ45 Cable (VE.Can models only), USB-VE.Direct interface
• External control cables: TX cable, non-inverting cable
• Bluetooth dongle (for non-smart models)
More information:
• To access the above-mentioned documents or information: press the search button on our website
and enter the appropriate search word.
• For connection to a Color Control GX or other GX device see:
https://www.victronenergy.com/live/venus-os:start.
and enter the appropriate search word.
• For connection to a Color Control GX or other GX device see:
https://www.victronenergy.com/live/venus-os:start.
BlueSolar Charge Controllers MPPT 75/10, 75/15, 100/15, 100/20-48V
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on our website for details
Day/night timing and light dimming option
See the software section on our website for details
Programming, real-time data and history display options
- Color Control GX or other GX devices: see the Venus documents on our website.
- A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
*VE.Direct Bluetooth Smart dongle needed to enable Bluetooth
https://createenergy.co.za/home/326-victron-vedirect-bluetooth-smart-dongle.html
