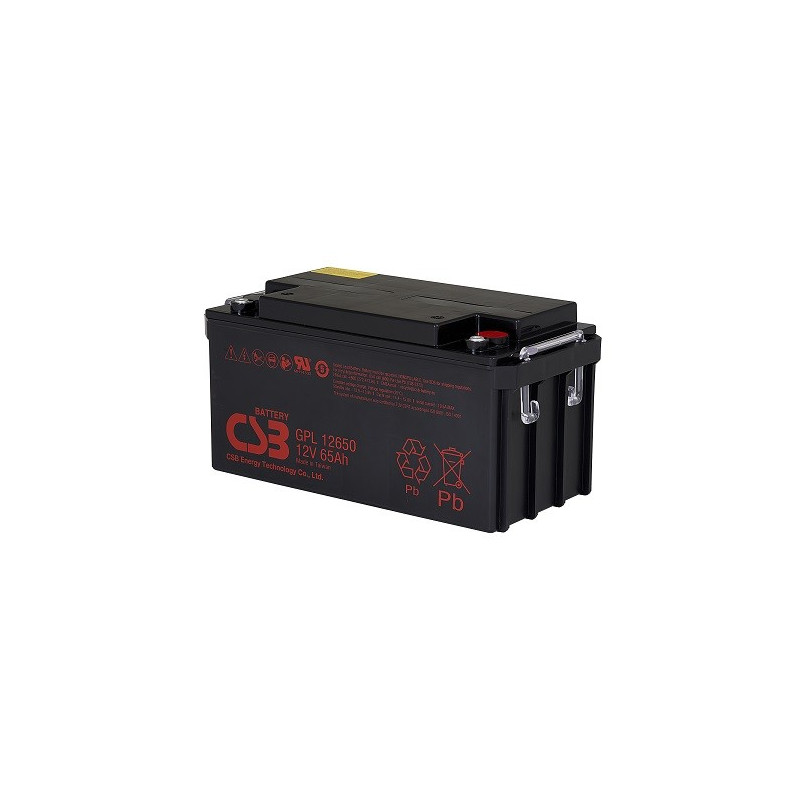

CSB 12V 65Ah VRLA AGM Battery 10 Year Design Life GPL12650
R3,559.00
Tax included
CSB GPL12650 Sealed Lead Acid Battery
8-10 Year Design Life
General Purpose VRLA Battery
12 Volts
65 Amp Hours
Please contact us for quantity discounts
Email: info@createenergy.co.za or telephone: +(27) 11 888 0410
CSB GPL12650 Sealed Lead Acid Battery
GPL12650 is a general purpose battery up to 10 years service life under normal float charge at 25℃ (77°F).
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
- When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
- With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
- With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
- Long life, low self-discharge rate and high reliability.
- It has safety, low resistance so recharge is easy and energy output is more remarkable.
- Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
- Standby use.
- High rate discharge construction.
- Deep discharge recoverability.
- Batteries are strictly tested by our patented computer charge/discharge system.
- ISO9001, 14001, OHSMS 18001 certified.
- UL recognized components under UL 1989 (file number MH14533).
- Complies with IATA/ICAO Special Provision A67 for air transport.
- Classified per MG Amendment 27 as a non-hazardous material for water transport.
- Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Applications
Standby Use:
- UPS power supplies
- Workstation UPS
- Emergency lighting equipment
- Precision instrument backup power
- Fire alarms and security systems
- Communications and electric equipment
- Office computers, processors and other office automation equipment
- Robots, control equipment and other factory automation equipment
- Emergency power supplies in power generation plants and substations
- Telecommunications
- Various telemeter equipment
Solar Cell Power Generation:
- Street lighting
- Portable power supply
- Water pumping stations
- Rural power systems
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 65Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight | Approx. 20.80kg. (45.9 lbs.) |
| Maximum Discharge current | 500A (5sec.) |
| Internal Resistance | Approx. 5.3 mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 3°F) |
| Float charging voltage | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F ) |
| Recommended Maximum Charging current limit | 19.5 A |
| Equalization and Cycle Service | 14.4 to 14.5 VDC/unit Average at 25℃ (77°F ) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| Container Material | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications
CSB GPL12650
Data sheet
| Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell | 65 |
|---|---|
| Height (mm) | 207 |
| Width (mm) | 138 |
| Length (mm) | 225 |
| Battery Rated Nominal Voltage | 12 |
| Battery Mass (kg) | 17.3 |
| Battery Terminal Type | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| Battery Technology | AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid) |
