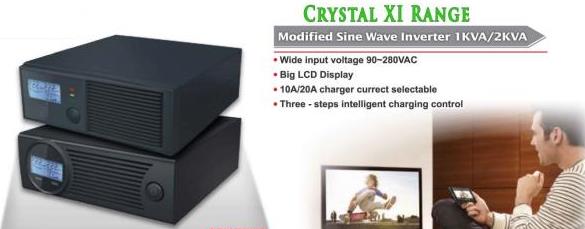

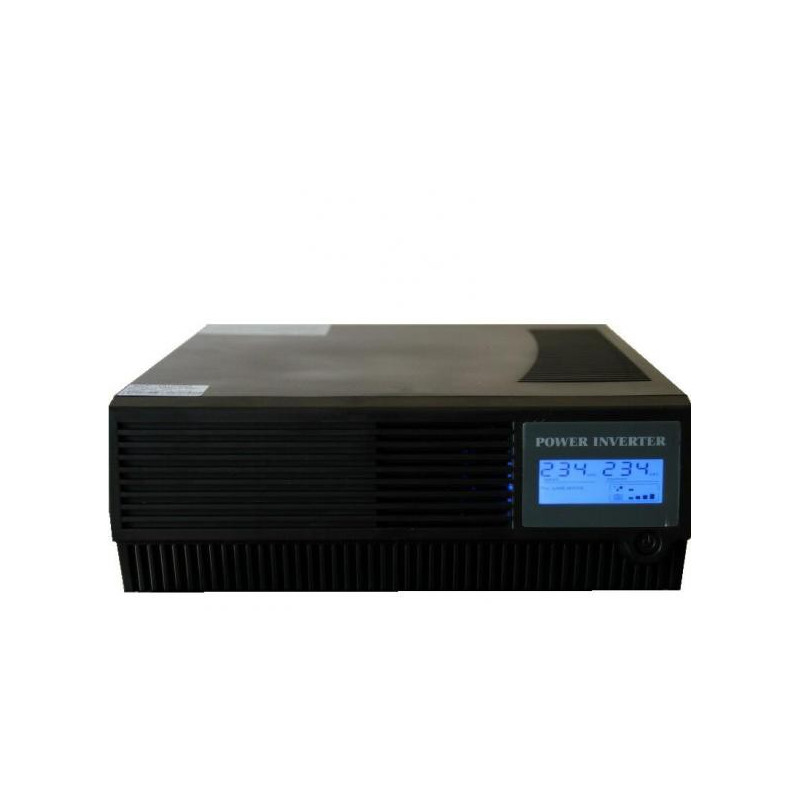

Crystal XI 1200 VA 12 Volt Plug 'n Play Modified Sine Wave Inverter/Charger (720W)

HEAD UNIT ONLY

• 1.2kVA / 1200VA / 720 Watt
• Includes 1 x RSA 3 pin plug points in the top of the inverter
• Plug and Play Inverter/UPS
• Modified Sine Wave Output
• 220 V ac Input
• 10 / 20 A Selectable 3 Step Automatic Mains Battery Charger
• Use x1 or x2 Flat Plate Semi Sealed Maintenance Free Batteries
• Not Suitable for use with AGM or Gel VRLA Sealed Lead Acid Batteries!

Simple to Use- Just a few simple steps to set up for uninterrupted power for hours. The Crystal XI is totally automatic and once setup will not need to be maintained. The unit will switch over to backup power in 8-20ms allowing you to continue to watch your favorite program / read your favorite book / to surf the net!

Model and Quality - This model is widely used around the world, due to its simplicity & durability. The Crystal XI  Inverter is known worldwide as the  the black casing with RSA 15 A 3 Pin output rear.

Providing Modified Sine Wave Power it can be used to power TV, Decoder, Stereo, PCs, Printers, Telephony Equipment, LED's and Energy Saver Lamps etc. (Anything with a Step Down to Low Voltage DC Power Supply).

NB: AC motors, Fluorescant Light fittings with Magnetic Ballasts and Transformers will be damaged by the Modified Sine Wave Output Waveform. Likewise, Repetitive Magnetization Peak Currents (100 Times Per Second) are likelyto cause Abnormal Wear and Tear on the Inverter and even cause it to fail!

Modified Sine Wave Inverters should NOT BE USED FOR SENSITIVE MEDICAL EQUIPMET (eg: Oxygen Generators)!

Create Energy also offers a range of Pure Sine For Pure Sine Inverters, Please contact us to discuss if unsure!

MODIFIED SINE WAVE!

MODIFIED SINE WAVE INVERTERS SHOULD ALSO NOT BE USED WITH LIFE SUPPORT MEDICAL EQUIPMENT!

HOW TO DETERMINE YOUR RUN TIME REQUIREMENT

(PLEASE READ)

You can tell the max power consumption of your equipment by looking at the power supply of the equipment or the rating plate For example, on a laptop power supply, we would look for output specifications, this could be for example: 19.5VDC, 3.3A 19.5V X 3.3A = max of 65W

Typical Loads Imposed by Various Common Appliances:

 A standard work laptop is generally +-65W (New Dell type 15” laptop)

         Gaming laptops generally use +-130W
         Normal workstation PC’s generally use +- 250 to 350W
         Gaming PC’s generally use +- 400W – 700W
         Wireless Routers generally use 6 – 30 Watts
         CPE Boxes generally use 18 – 30 Watts
         VOIP Phones generally use 3 – 10 Watts for the wireless base and generally 3W for the VOIP phone  charger (single home voip phone)
         LED Desk Lamp is generally: 5W
         A 55" Flat Screen LCD TV (Non Smart) is generally +-100 Watts.

A 55" SMART TV is Generally 150 Watts.

A 65" SMART TV is Generally 220 Watts.

A 75"SMART TV is Generally 250 Watts

         DSTV PVR Decoder is generally +-45W
         A second PC screen (24” LCD / LED) is generally +-26W – 50W
         Cell phone chargers are generally +-20W – 40W
         Surround Sound systems can be 700W+
         Soundbars are generally +-65W for the smaller units
         Laser printers can use 300 – 550W+
         Do not run High Power Resistive Loads (coffee machines, kettles, irons, hair dryers, geysers, heaters etc. etc.)

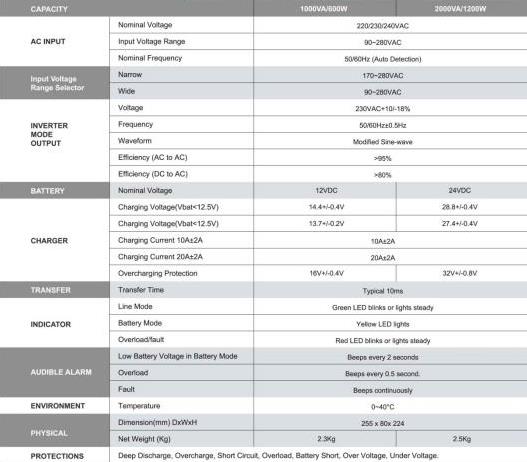

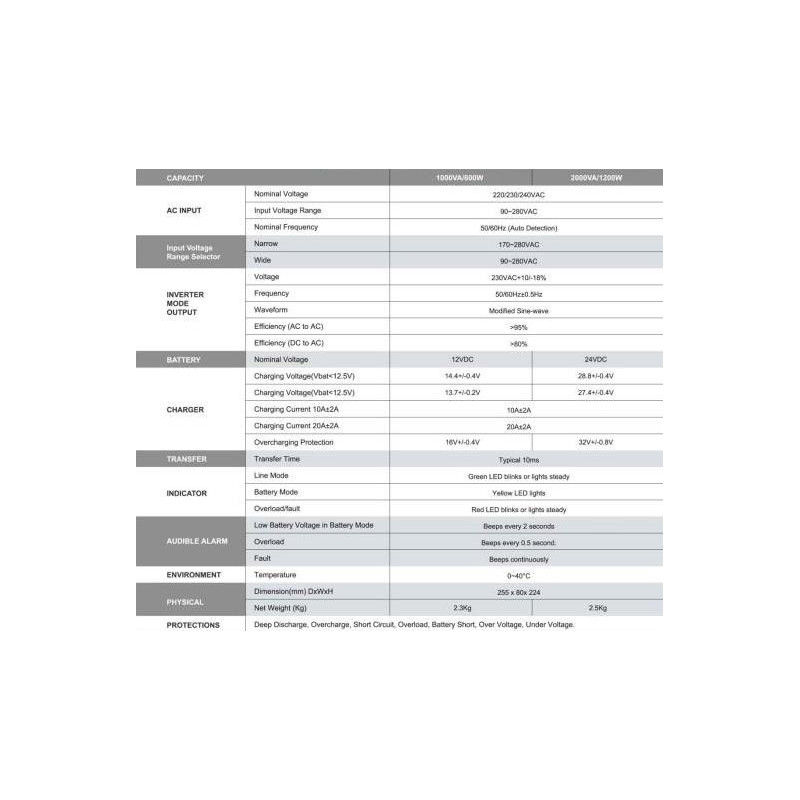

SPECIFICATIONS

CLICK HERE to Download Manufacturer's Specification Brochure
