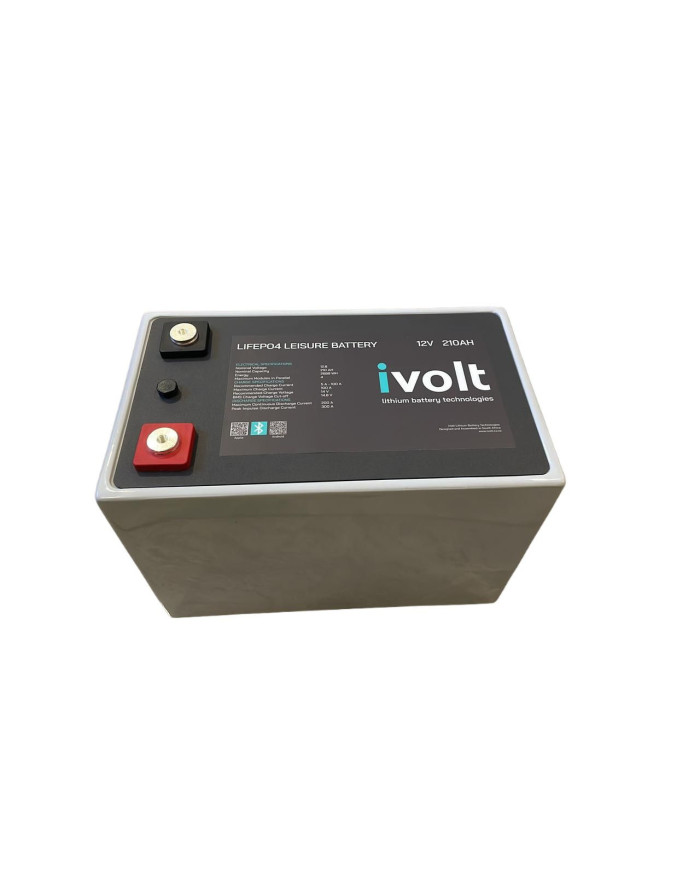

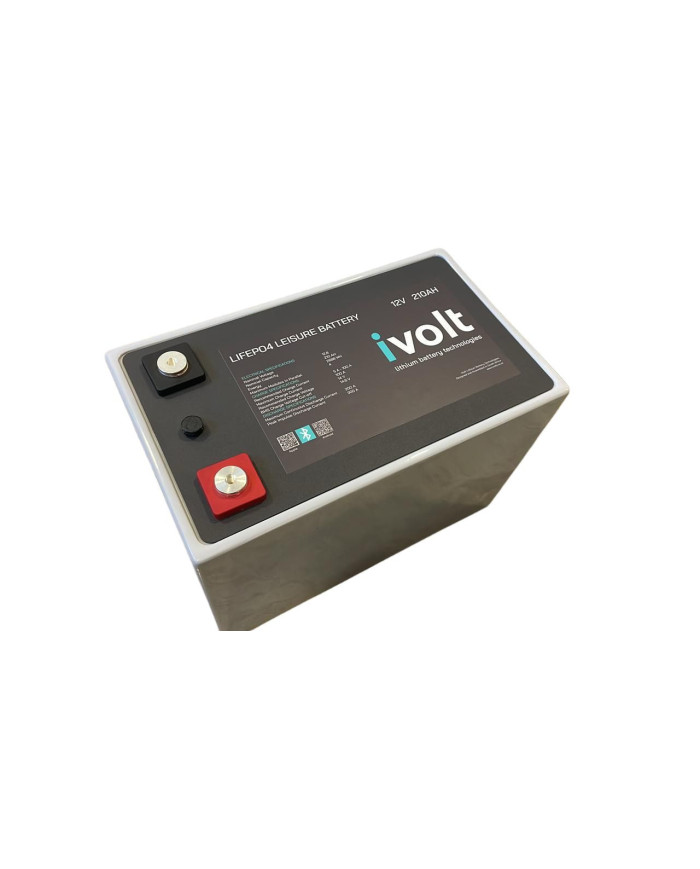

iVOLT 12.8V 210Ah Lithium Battery with Bluetooth BMS liFePO4
iVOLT LITHIUM - Powered by EVE Cells
BLUETOOTH SMART
12.8V 210Ah LIFePO4 DEEP CYCLE BATTERY
Advanced LIFePO4 DEEP CYCLE BATTERY
SUPER COMPACT 345 X 190 X 245 mm, 25kG
With Bluetooth App
Limited 5 Year / 2000 Cycle Warranty in RSA (Full warranty information below)
iVOLT LITHIUM
BLUETOOTH SMART
12.8V 210Ah LIFePO4 DEEP CYCLE BATTERY
Advanced LIFePO4 DEEP CYCLE BATTERY
With Bluetooth App
And
Limited 5 Year / 2000 Cycle Warranty in RSA (Full warranty information below)
Cell Type | Grade A EVE 105Ah (8 Cells) |
Cell Configuration | 4 Series, 2 Parallel |
Chemistry | LiFePO4 |
Nominal Capacity | 210Ah |
Cell Nominal Voltage | 3.2 X 4 (12.8V) |
Energy Wh | 2688 |
Cycle Life | 4000 Cycles @ 80% DOD |
Max Continuous Discharge Current | 200A |
Max Impulse Discharge (Peak) | 300A |
Suggested Charge Voltage | 14V |
Max Charge Voltage | 14.8 |
Discharge Cut Off Voltage | 11.2 |
Charge Temperature Range | -10°C - 60°C |
Discharge Temperature Range | -20°C - 60°C |
Storage Temperature Range | 10°C - 35°C |
Measurements (mm) | 345 X 190 X 245 |
Weight | 25kG |

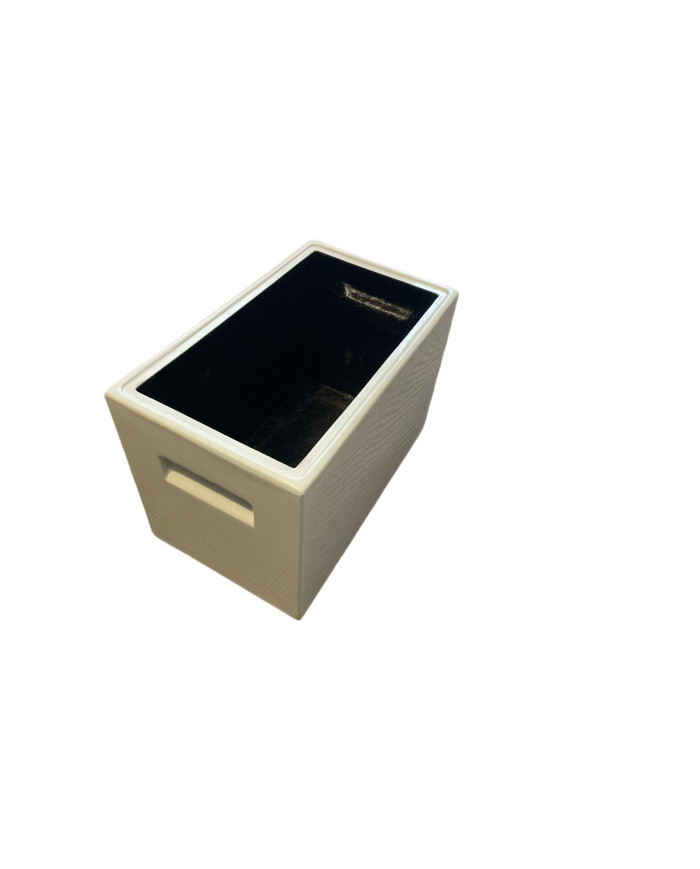

Housing / Case Material | ABS Plastic |
Conformity | UN38.3, ROHS, CE, UL |

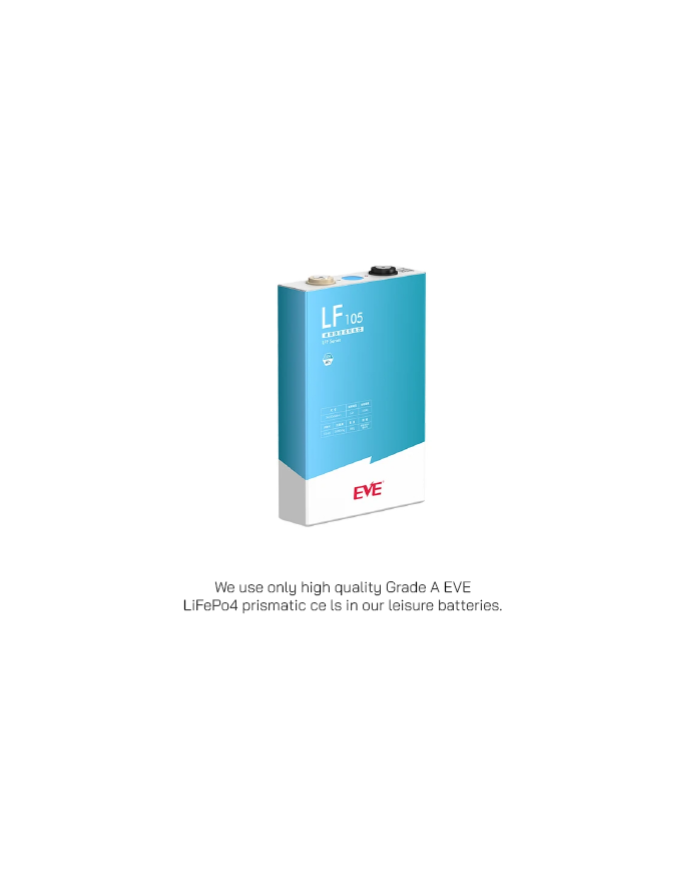

Our longstanding collaboration with EVE has allowed us to deliver countless prismatic cells to end users,
businesses, and commercial suppliers over an extensive period.
Through our collaboration with EVE, we have gained in-depth knowledge of their cell chemistry and technical
specifications, establishing EVE as the ideal match for our range of batteries.
Many suppliers of batteries are unaware of which cells are utilized during assembly and lack understanding
of the grading, quality control processes, or the configurations employed. This is why we have been
actively involved from the very beginning of our product's development, meticulously selecting every
component, from the prismatic cells to the BMS, to ensure the creation of the ultimate lithium battery.

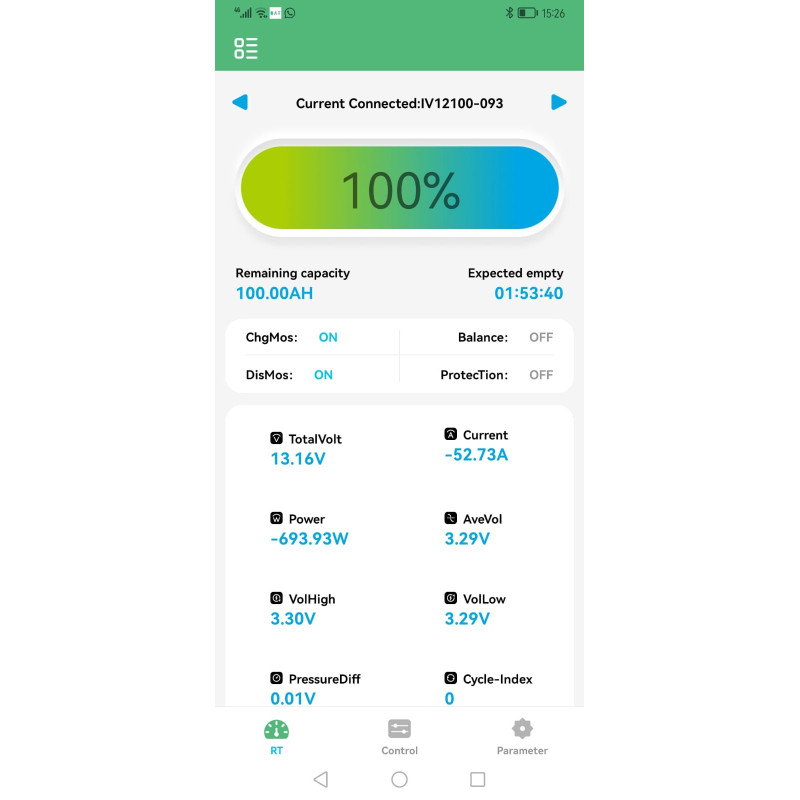

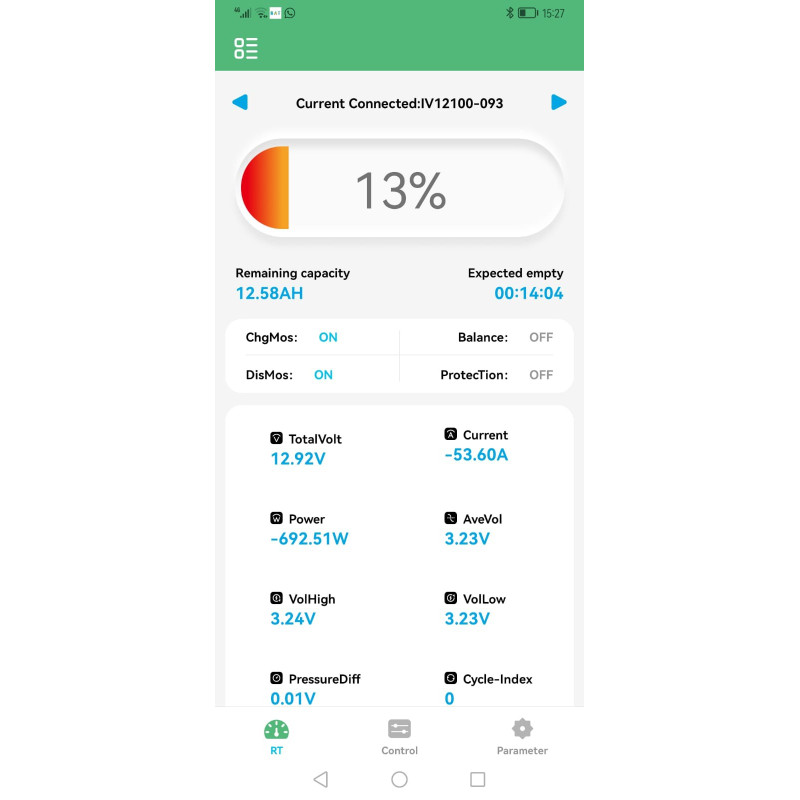

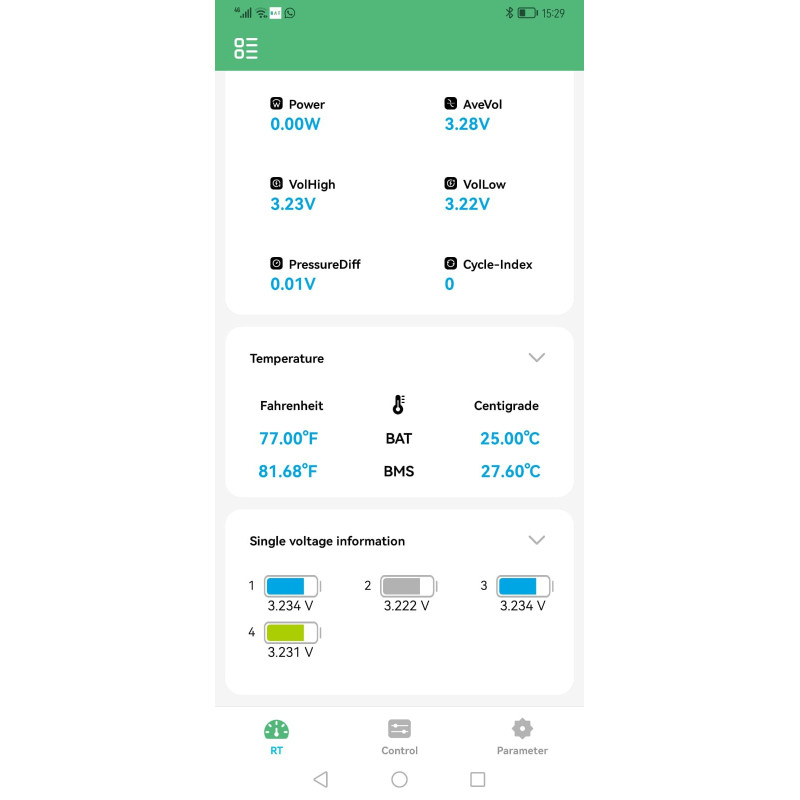

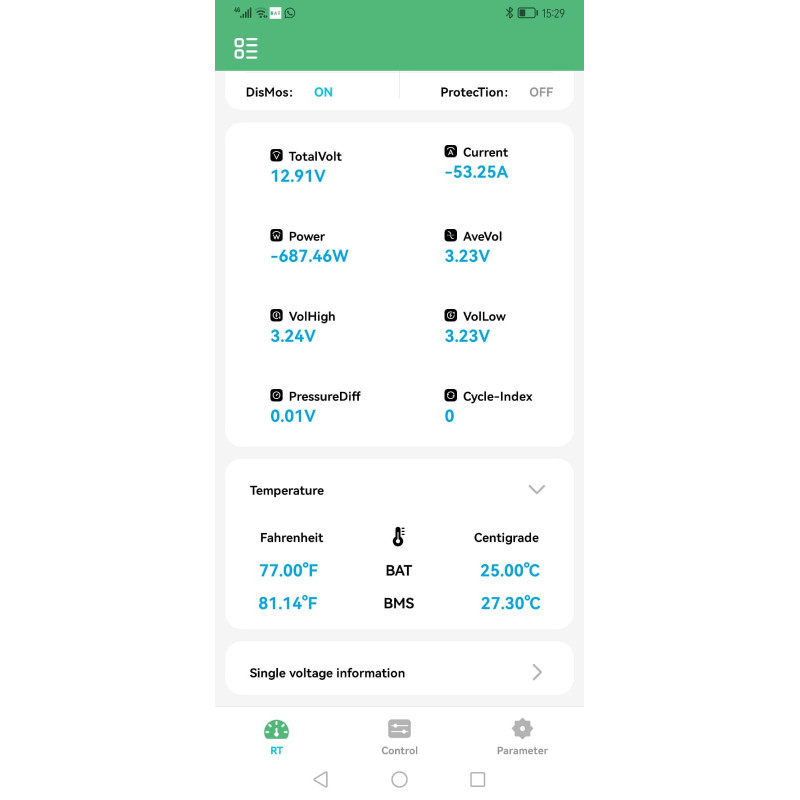

STAY IN CONTROL AND MONITOR STATE OF CHARGE AND BATTERY HEALTH with ADVANCED BLUETOOTH APP
CLICK HERE TO DOWNLOAD ANDROID APP FROM GOOGLE PLAY STORE
CLICK HERE to Download IOS Version from Apple App Store

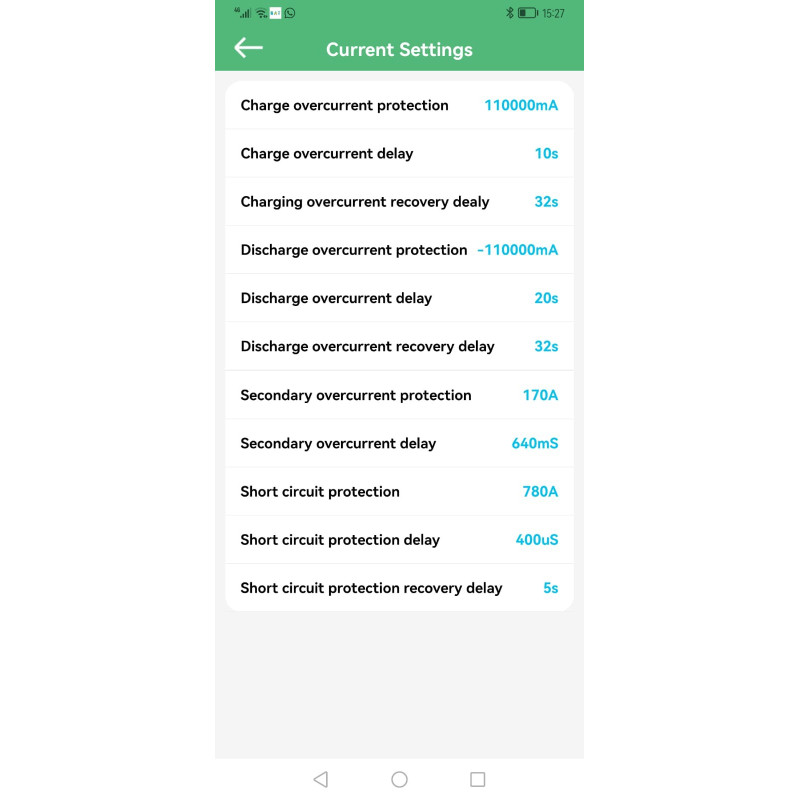

SMART BMS FEATURES
State of Charge Display
Overcharge Protection
Over Discharge Protection
Over Current Protection
Voltage Balancing
Short Circuit Protection
Over Temperature Protection
Under Temperature Protection
Manufacturer's Limited Carry in Warranty Information:
5 YEAR DEFECT AND PERFORMANCE WARRANTY
iVolt Lithium Battery Technologies (Pty) Ltd. extend this limited warranty only to the consumer who originally purchased the product. It does not extend to any subsequent owner or other transferee of the product. In the unlikely event you are having an issue with one of our batteries, your iVolt battery has a 5-year manufacturer’s defect and performance warranty from the date of purchase. This warranty starts on the date your purchase is collected or shipped to you, and lasts for 5 years. The warranty period is not extended if we repair or replace the product. With respect to any defective product during the first 2 years of the Warranty Period, iVolt will replace the defective product with a new or similar battery. Replacement batteries under warranty in the 3-5 year period of the warranty will be replaced with a similar battery within tolerance in relation to the age of the purchased battery. We provide a comprehensive 5-year warranty on all LiFePO4 battery cells and a 2-year warranty on the Battery Management System (BMS) This warranty does not cover negligence or misuse of the battery. If it is deemed that the battery was used improperly, you will be subject to a repair charge plus parts and shipping.
PERFORMANCE WARRANTY
Our performance warranty guarantee’s less than 10% loss of capacity within the first 2-year period and less than 20% performance loss in the 3-5 period of the warranty.
Our LiFePO4 batteries use cells with a half-life of 6,000 recharge cycles (half-life is 50% depth of discharge), this is approximately 12 to 15 years at regular use. 12 to 15 years is the expected usable lifespan possible under optimal conditions and customer care.
iVolt advertises the minimum expected lifespan of 5 years, or roughly 2,000 recharge cycles at regular use.
Batteries that do not meet this performance and/or lifespan of 5 years will be repaired or replaced with a similar unit within tolerance in relation to the age of the purchased battery.
