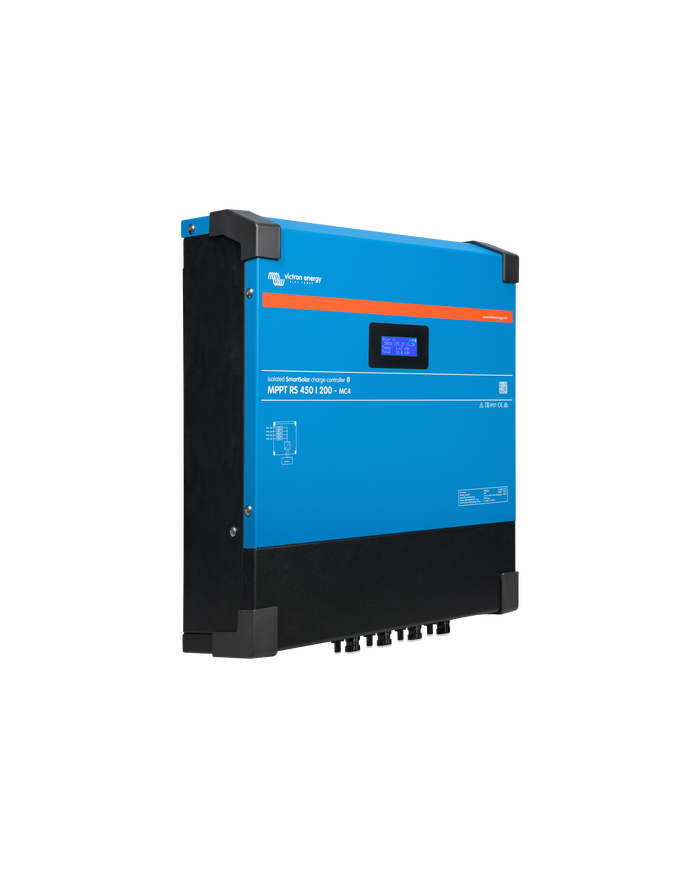

Victron SmartSolar MPPT RS 450/200-MC4 Solar Charge Controller
R42,872.00
R28,719.95
Tax included
SmartSolar MPPT RS 450/200-MC4 Solar Charge Controller
450VDC MAX Solar Array
48VDC Output
200A
11.5kW at 57.6VDC Max Charge Power
CONTACT US FOR QUANTITY DISCOUNTS / INSTALLER / RESELLER PRICING
info@createenergy.co.za / 0118880410
SmartSolar MPPT RS
450/100-Tr & 450/200-MC4
The SmartSolar MPPT RS solar charge controllers are Victrons solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 80 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.
The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.
Setup and monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

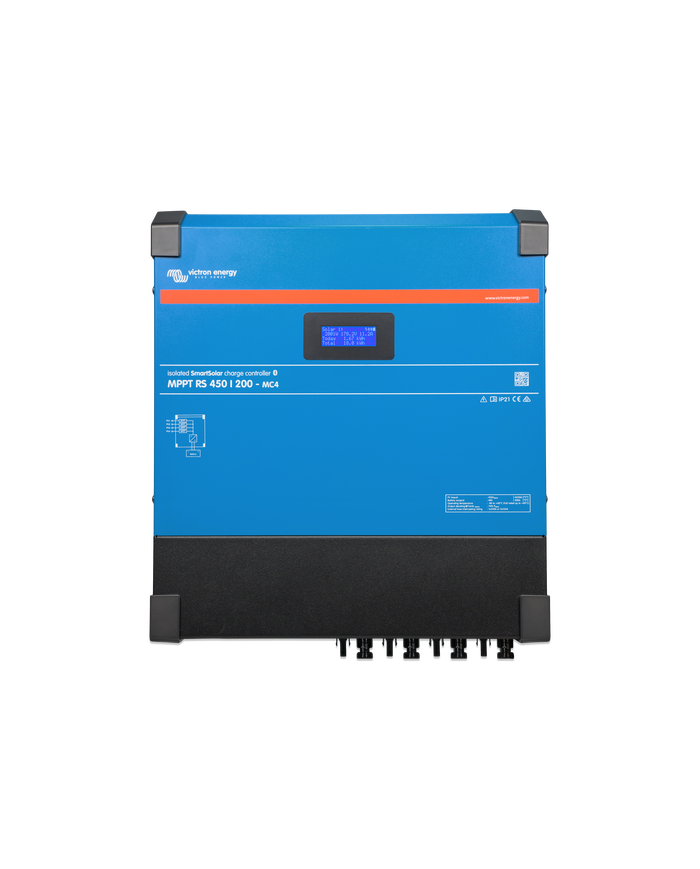

SmartSolar Display
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.
I/O Connections
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A, or 200A output.
It is used in on-grid and off-grid solar applications where maximum battery charging power is required.
Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.

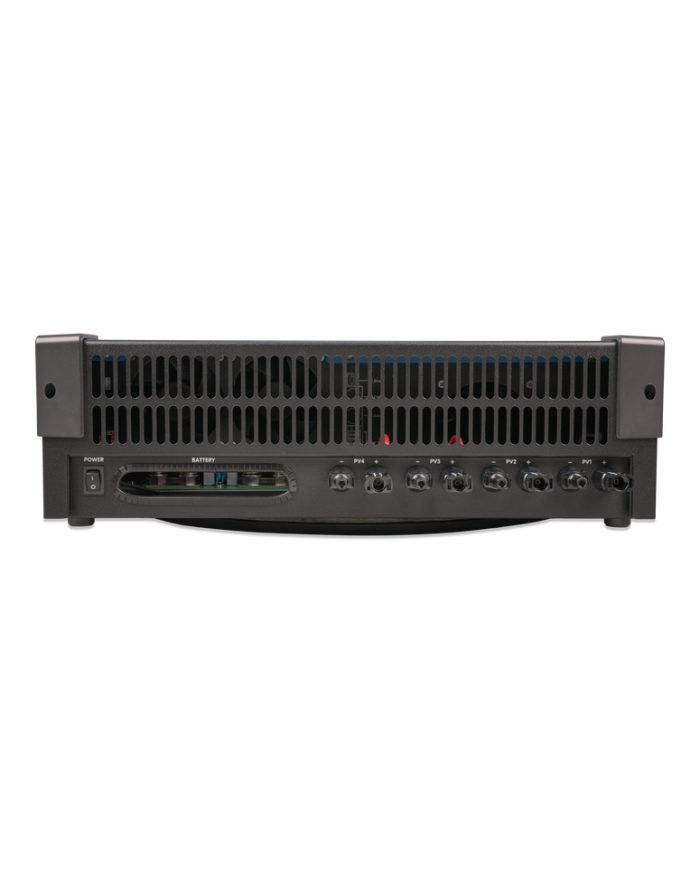

Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.
Wide MPPT voltage range
80 – 450 VDC PV operating range, with a 120VDC PV startup voltage.
Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100A model.
In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display and Bluetooth
The display reads battery, and controller parameters.
The parameters can be accessed with a smartphone or other Bluetooth enabled device.
In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates.
VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.

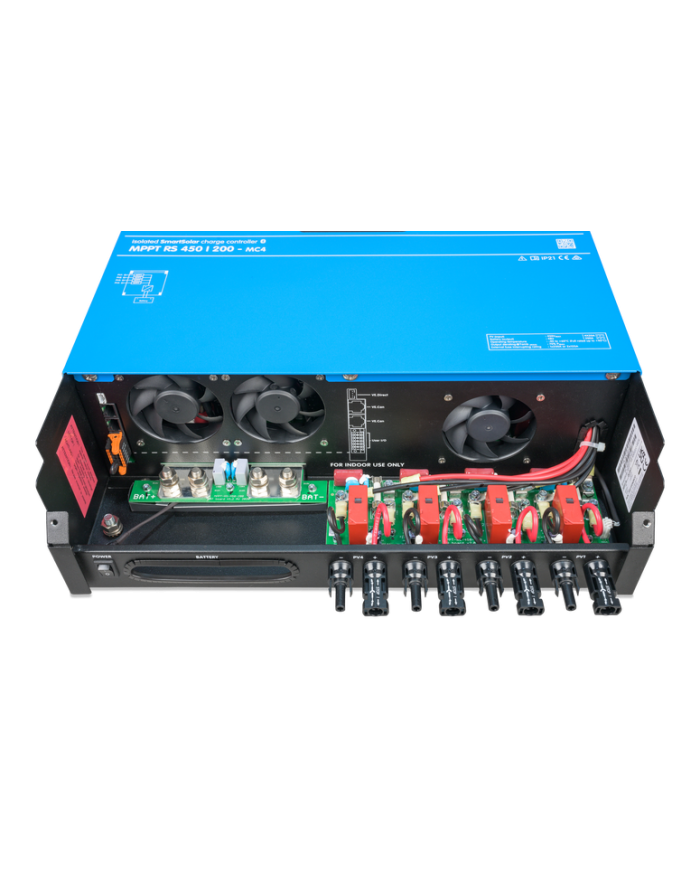

I/O Connections
Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor
connections. The remote input can accept the Victron smallBMS, and other BMS with
allow-to-charge signal.
connections. The remote input can accept the Victron smallBMS, and other BMS with
allow-to-charge signal.
Configure and monitor with VictronConnect
The built-in Bluetooth Smart connection allows for quick monitoring and settings adjustment.
The built in 30 day history shows individual performance of the separate MPPT trackers.
Try the VictronConnect demo to see the full range of configuration and display options with sample data.
System example diagram
The 100A MPPT RS combined with a GX device, charging a 48V battery with 2 separate solar PV strings.
.png)
VRM Portal
When the MPPT RS is connected to a GX device with internet connection, or the GlobalLink 520 with built in 4G connectivity, you can access our free remote monitoring website (VRM).
This will display all your system data in a comprehensive graphical format.
Alarms can be received by e-mail.
