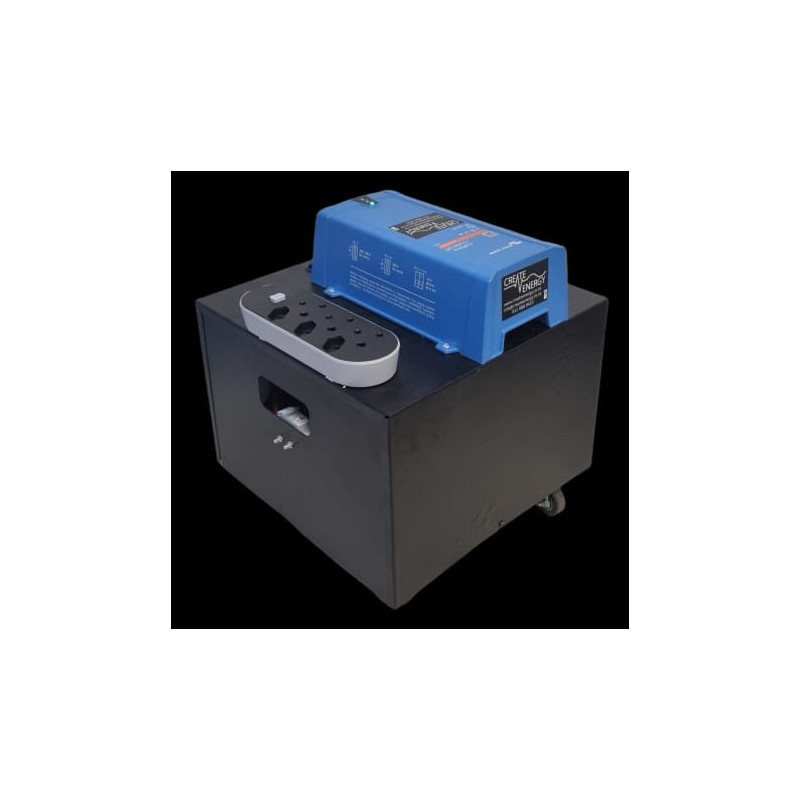

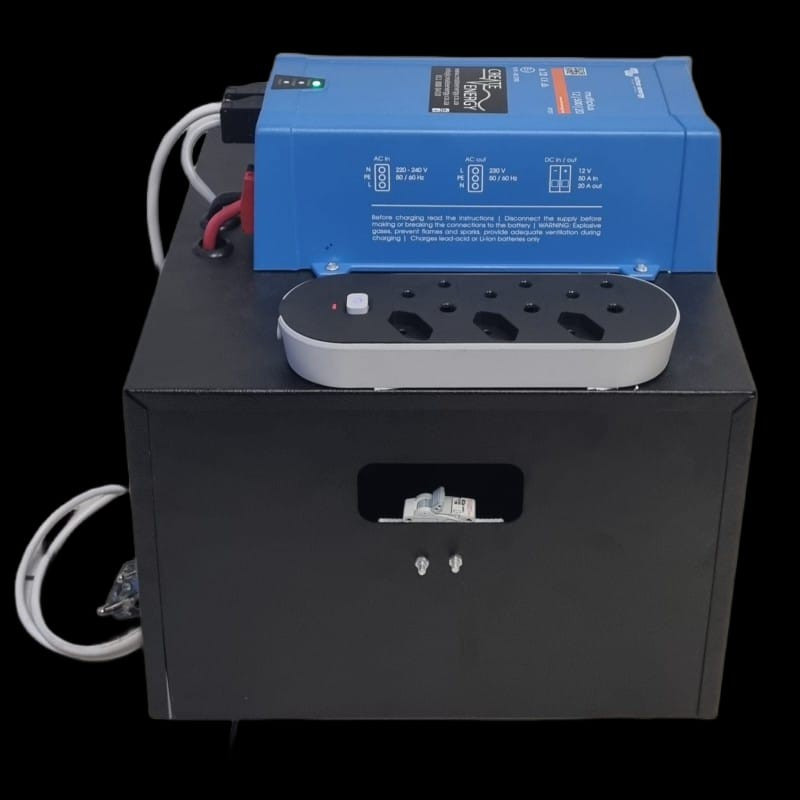

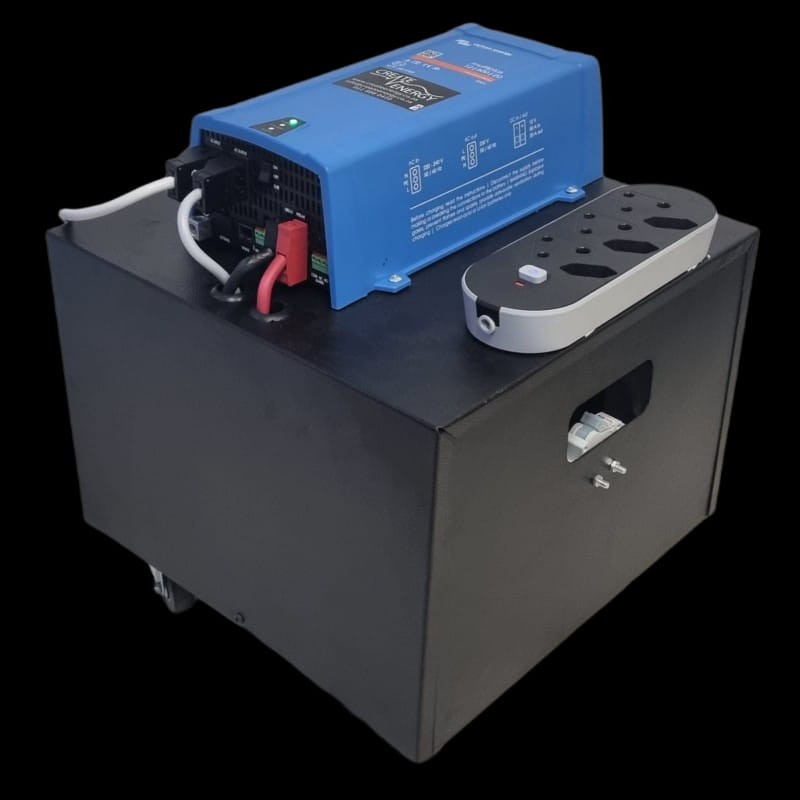

Victron 500VA Lithium Plug and Play Kit 12V Multiplus Inverter / Charger (NO BATTERIES)

Victron MultiPlus 12/500/20-16 230V VE.Bus PLUG AND PLAY KIT (EXCLUDING BATTERIES)

5 Year Manufacturer's warranty on the Inverter / Charger (Owing to normal use)

Multiple battery options (Multiple warranties)

500VA / 430W @ 25°C

12VDC, 20A Charger, Lithium Ion battery compatible

Runtimes: 150W for +- 7 Hours, 200W for +- 5 Hours

Recharge Time: Flat to 95% State of Charge: +- 5 Hours

16A Transfer Switch

230VAC

Please contact us for quantity discounts

Email: info@createenergy.co.za or telephone: +(27) 11 888 0410

Kit Includes:

1 X Victron MultiPlus 12/500/20-16 230V VE.Bus

1 X C2 Steel Battery Cabinet / Trolley on Castor Wheels (Can hold up to 2 X 100Ah 12V Batteries)

1 X Mounted Multiplug outlet

1 X Power inlet cable

This unit can charge up to 2 X 100Ah 12V Batteries

Optional Victron VE.Bus Smart dongle with RJ45 Cable (THIS ALLOWS FOR MONITORING AND CONTROL OF THE INVERTER VIA BLUETOOTH THROUGH THE FREE VICTRONCONNECT APP)

CLICK HERE TO VIEW THE OPTIONAL VE.BUS BLUETOOTH SMART DONGLE ACCESSORY SO YOU CAN MONITOR AND CONTROL YOUR VICTRON PLUG AND PLAY INVERTER / CHARGER VIA THE FREE VICTRONCONNECT BLUETOOTH APP FOR SMARTPHONES / TABLETS:

CLICK HERE FOR THE OPTIONAL VICTRON BLUETOOTH PLUG AND PLAY ADD ON

Screenshots:

Victron MultiPlus 12/500/20-16 230V VE.Bus Inverter / Charger

500VA / 430W @ 25°C

12VDC, 20A Charger

16A Transfer Switch

230VAC

Uninterrupted AC power (UPS function)

Remote Monitoring and Control

Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

PowerControl - Dealing with limited generator, shore side or grid power

With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power

Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

High start-up power

Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode

When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay

By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
