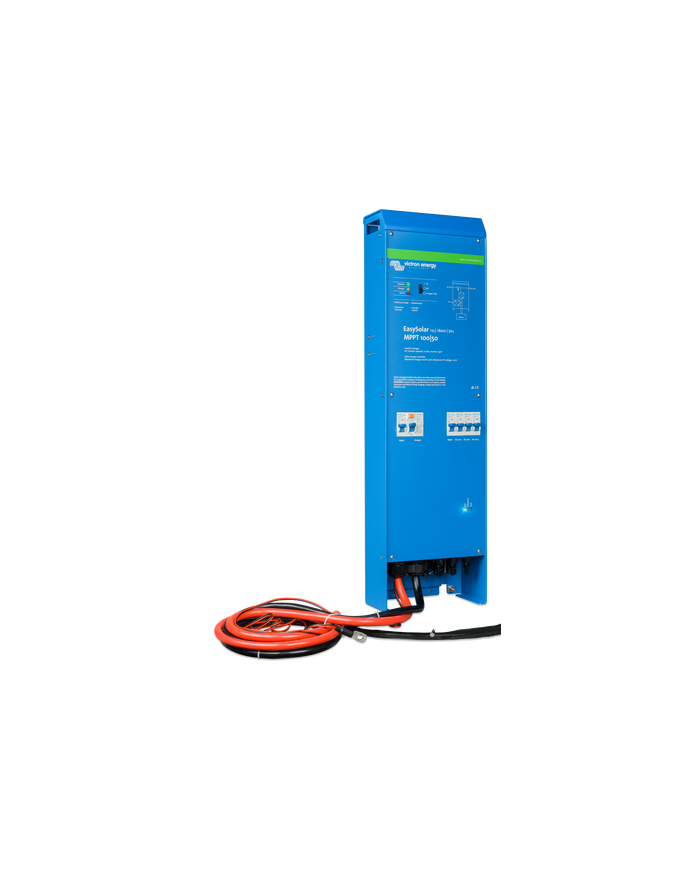

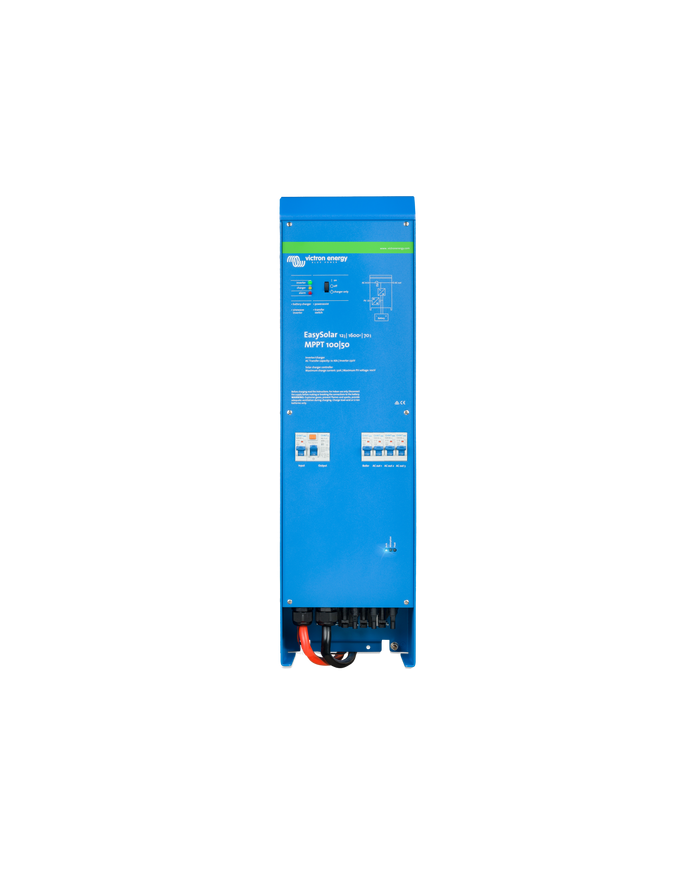

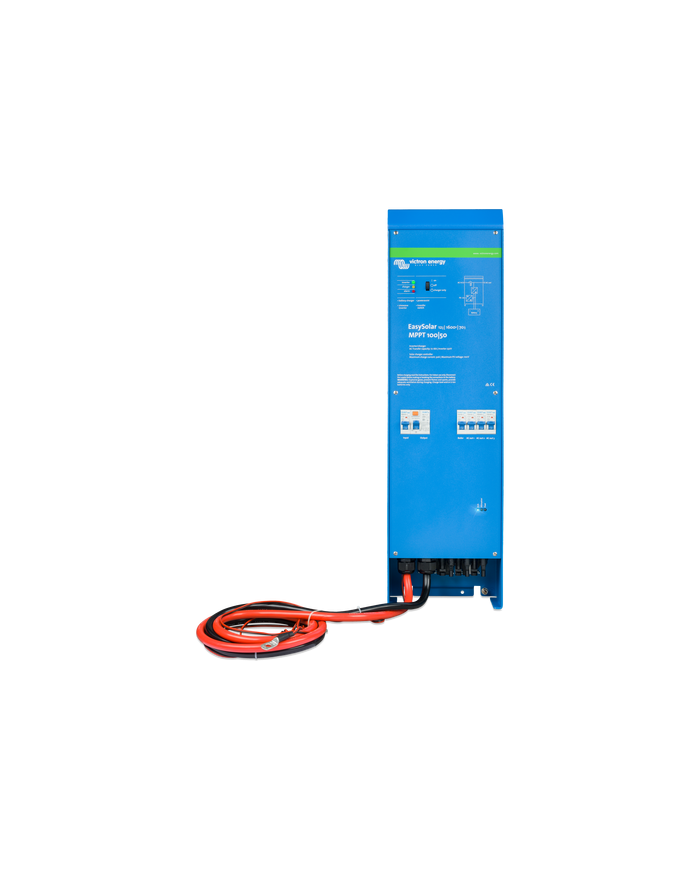

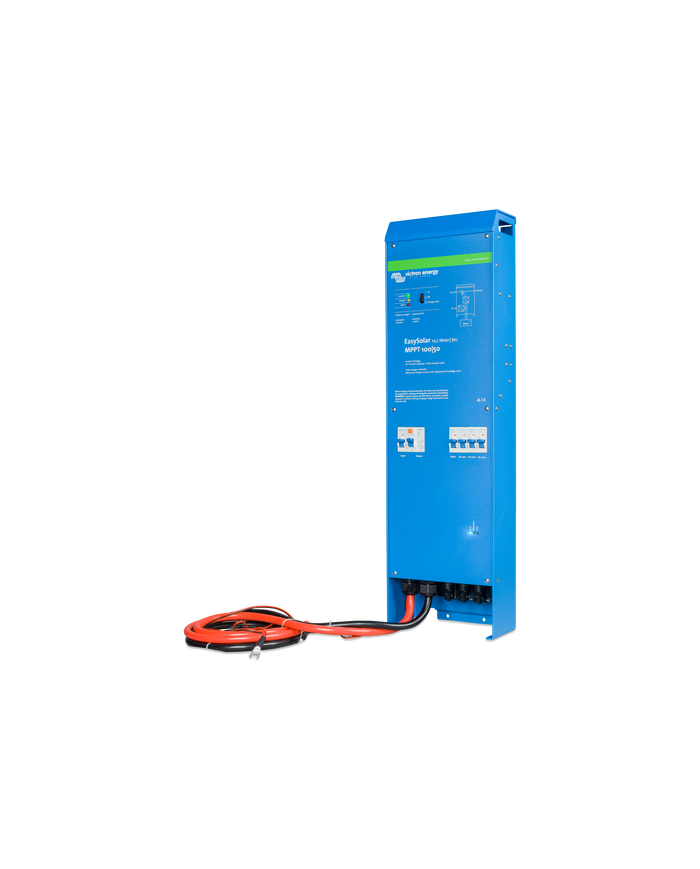

Victron EasySolar 12/1600/70-16 230V MPPT 100/50 Inverter / Charger with Solar Charger

Please contact us for quantity discounts

Email: info@createenergy.co.za or telephone: +(27) 11 888 0410

Victron EasySolar 12/1600/70-16 230V MPPT 100/50

1600VA

12VDC, 50A MPPT Solar Charger

70A Mains Charger

16A Transfer Switch

230VAC

All-in-one solar power solution

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

The solar charge controller: Blue Solar MPPT 100/50

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.

The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

AC distribution

The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
