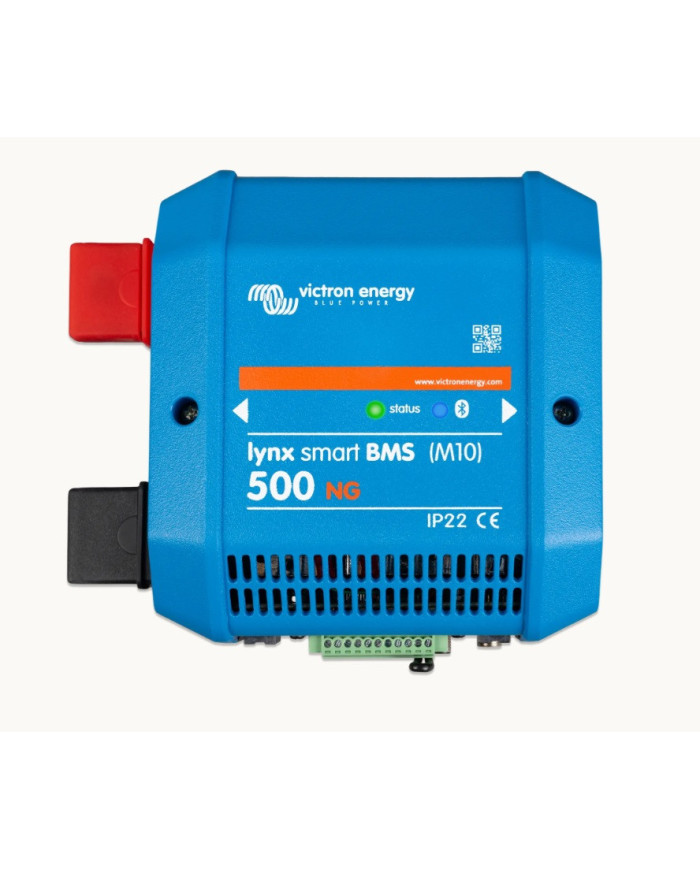

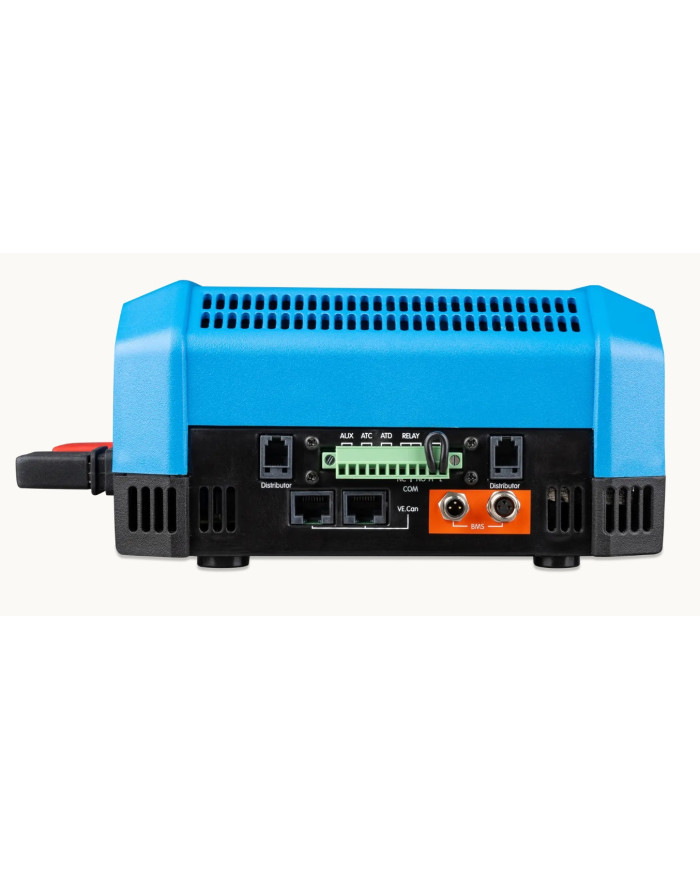

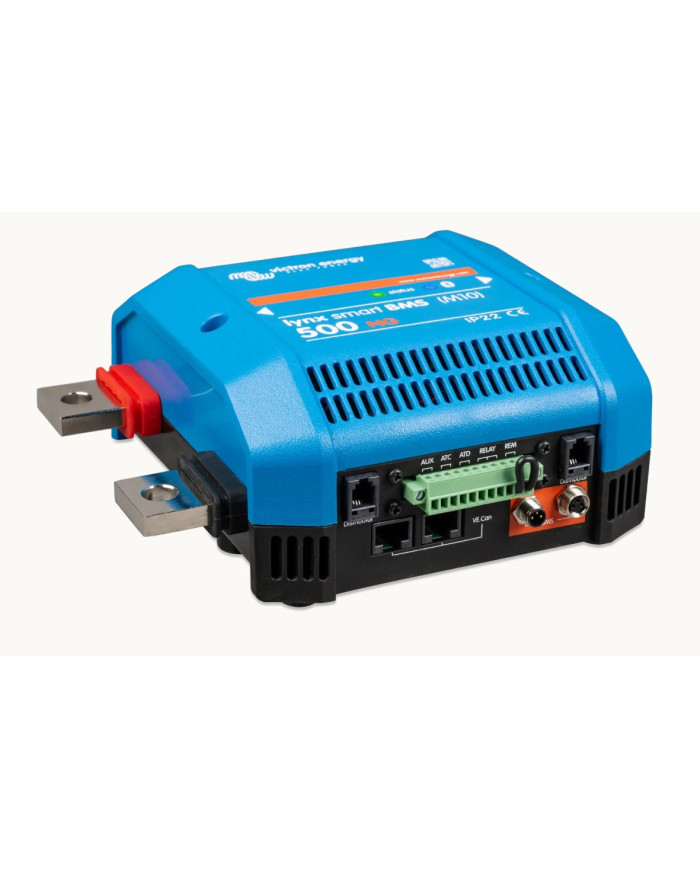

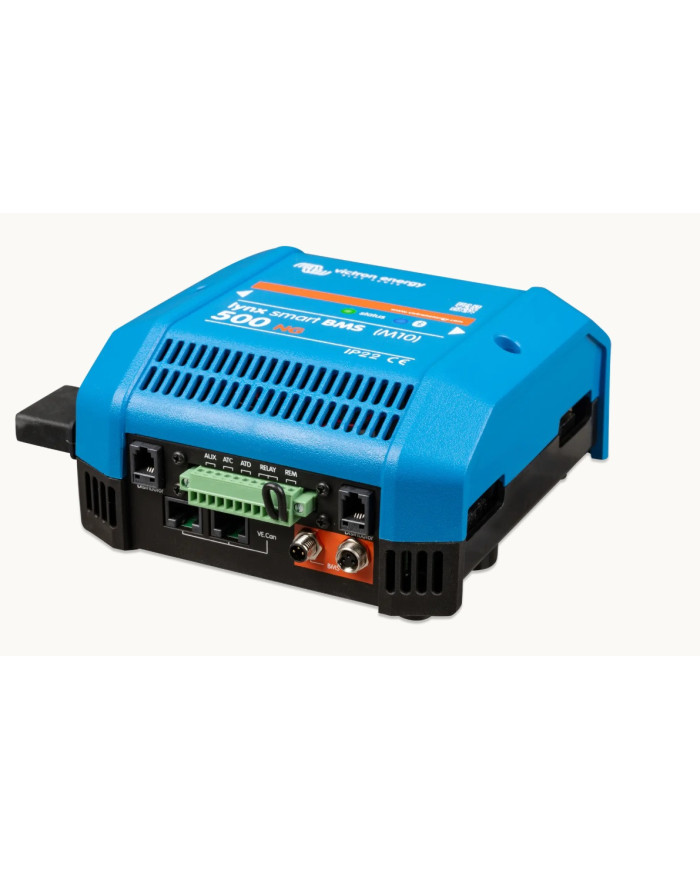

Victron Lynx Smart BMS 500 NG (M10)

Victron Lynx Smart BMS 500 NG (M10)

The Lynx Smart BMS NG is an advanced Battery Management System specifically designed for Victron Energy Lithium NG batteries (not to be confused with the Lynx Smart BMS, which is for Victron Lithium Battery Smart batteries). This robust BMS ensures seamless performance, optimal safety, and efficient monitoring for Lithium NG battery banks, which are available in nominal voltages of 12.8V, 25.6V, and 51.2V with various capacities. Available in two sizes - 500A and 1000A - the Lynx Smart BMS NG provides a reliable, safe, and user-friendly solution.

The battery systems can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. Each system can accommodate up to 50 batteries, offering up to 192kWh (12V) or 384kWh (24V/48V) of energy storage. By paralleling multiple Lynx Smart BMS units, you can expand capacity and ensure redundancy.

Key Features:

Built-in 500A or 1000A Contactor: Provides fallback safety and enables remote-controlled main system switching.

Battery Monitoring: Displays state of charge and other vital data for efficient system management.

Pre-Alarm Signal: Alerts before system shutdown due to low cell voltage

Bluetooth Connectivity: Easily set up, monitor, and diagnose the system from our VictronConnect App.

Local & Remote Monitoring: Compatible with Victron GX devices, like the Cerbo GX, and the VRM portal for real-time monitoring.

M10 Busbar Integration: Seamlessly connects to all Lynx M10 products, ensuring smooth integration into the Lynx Distributor system.

The Lynx Smart BMS NG is an integral part of the modular Lynx Distribution system.
