CSB 12V 9Ah VRLA AGM Battery 8 Year Design Life HRL1234W
R529.00
Tax included

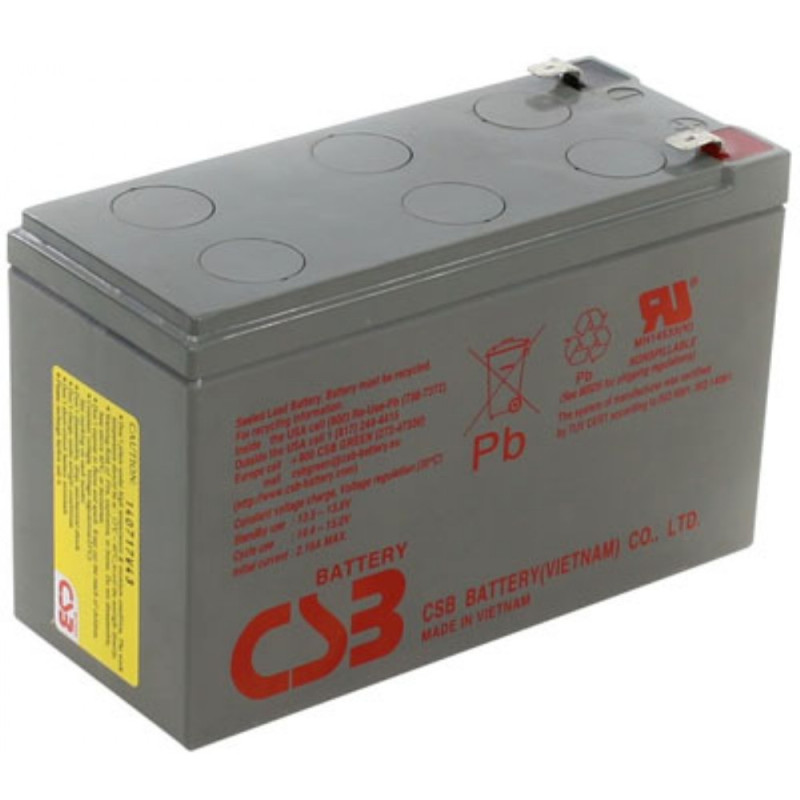

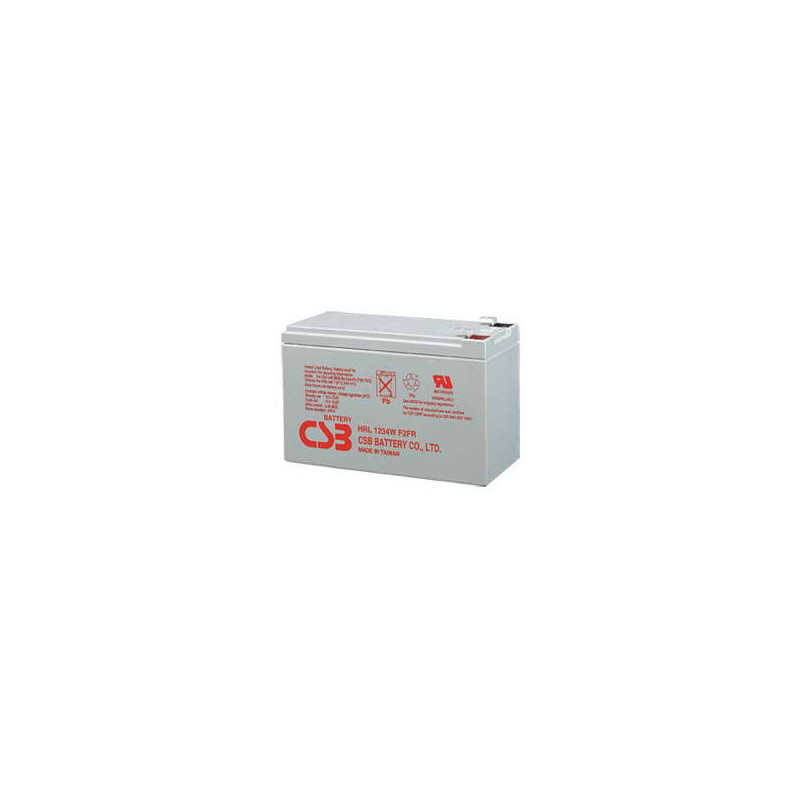

CSB HRL1234WF2 Sealed Lead Acid Battery
8 Year Design Life
12 Volts
9 Amp Hours
Please contact us for quantity discounts
Email: info@createenergy.co.za or telephone: +(27) 11 888 0410
CSB HRL1234WF2 Sealed Lead Acid Battery
| 12 V | 34.0w/cell |
| HRL 1234WF2 is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used for more than 260 cycles at 100% discharge in cycle service, up to 10 years in standby service. | |
Features
HRL stands for High Rate and long life. The series focus on improving trickle life that base on HR series. Main features as follow:
- When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
- With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
- With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
- Long life, low self-discharge rate and high reliability.
- It has safety, low resistance so recharge is easy and energy output is more remarkable.
- Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
- Standby use.
- High rate discharge construction.
- Deep discharge recoverability.
- Batteries are strictly tested by our patented computer charge/discharge system.
- ISO9001, 14001, OHSMS 18001 certified.
- UL recognized components under UL 1989 (file number MH14533).
- Complies with IATA/ICAO Special Provision A67 for air transport.
- Classified per MG Amendment 27 as a non-hazardous material for water transport.
- Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Applications
Standby Use:
- UPS power supplies
- Workstation UPS
- Emergency lighting equipment
- Precision instrument backup power
- Fire alarms and security systems
- Communications and electric equipment
- Office computers, processors and other office automation equipment
- Robots, control equipment and other factory automation equipment
- Emergency power supplies in power generation plants and substations
- Telecommunications
- Various telemeter equipment
Solar Cell Power Generation:
- Street lighting
- Portable power supply
- Water pumping stations
- Rural power systems
| Trickle (or float) Service Life |
|
‧With nominal capacity less than 80W, the series battery is up to 8 years of service life in floating charge conditions at 25℃(77℉). ‧With nominal capacity greater than 110W, the series battery is up to 10 years of service life in floating charge conditions at 25℃(77℉). |
Specifications:
| Specification |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) |
| Weight | Approx. 2.7 kg(5.95 lbs) |
| Maximum Discharge Current | 130A (5 Sec) |
| Internal Resistance Approx. | Approx. 17 mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C±3°C(77°F±5°F) |
| Float Charging Voltage | 13.5 to 13.8 VDC/Unit Average at 25°C(77°F) |
| Recommended Maximum Charging Current Limit | 3.4A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/Unit Average at 25°C(77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | F2-Faston Tab 250 |
| Container Material | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
CSBHRL1234W
Data sheet
| Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell | 9 |
|---|---|
| Height (mm) | 100 |
| Width (mm) | 65 |
| Length (mm) | 151 |
| Battery Rated Nominal Voltage | 12 |
| Battery Mass (kg) | 2.5 |
| Battery Terminal Type | F2 Faston Tab 250 |
| Battery Technology | AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid) |
