6V 9Ah VRLA AGM Battery 8 Year Design Life CSB HRL634WF2
R379.00
Tax included

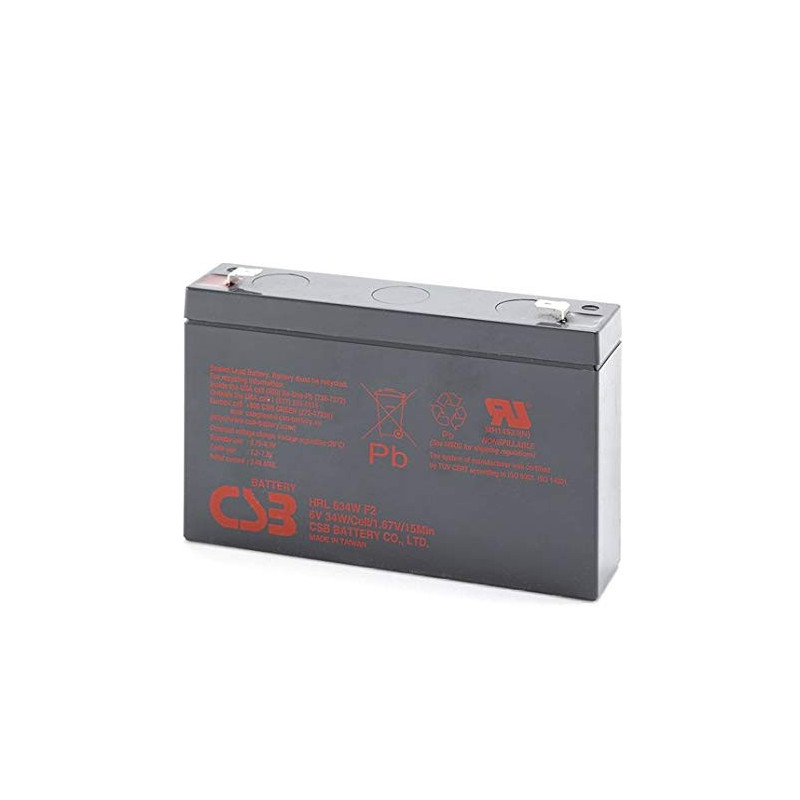

CSB HRL634WF2 Sealed Lead Acid Battery
8-10 Year Design Life
6 Volts
9 Amp Hours
44.1W
Please contact us for quantity discounts
Email: info@createenergy.co.za or telephone: +(27) 11 888 0410
CSB HRL634WF2 Sealed Lead Acid Battery
| HRL634W | ||||
|
||||
Features
HRL stands for High Rate and long life. The series focus on improving trickle life that base on HR series. Main features as follow:
- When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
- With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
- With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
- Long life, low self-discharge rate and high reliability.
- It has safety, low resistance so recharge is easy and energy output is more remarkable.
- Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
- Standby use.
- High rate discharge construction.
- Deep discharge recoverability.
- Batteries are strictly tested by our patented computer charge/discharge system.
- ISO9001, 14001, OHSMS 18001 certified.
- UL recognized components under UL 1989 (file number MH14533).
- Complies with IATA/ICAO Special Provision A67 for air transport.
- Classified per MG Amendment 27 as a non-hazardous material for water transport.
- Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Applications
Standby Use:
- UPS power supplies
- Workstation UPS
- Emergency lighting equipment
- Precision instrument backup power
- Fire alarms and security systems
- Communications and electric equipment
- Office computers, processors and other office automation equipment
- Robots, control equipment and other factory automation equipment
- Emergency power supplies in power generation plants and substations
- Telecommunications
- Various telemeter equipment
Solar Cell Power Generation:
- Street lighting
- Portable power supply
- Water pumping stations
- Rural power systems
| Trickle (or float) Service Life |
|
‧With nominal capacity less than 80W, the series battery is up to 8 years of service life in floating charge conditions at 25℃(77℉). ‧With nominal capacity greater than 110W, the series battery is up to 10 years of service life in floating charge conditions at 25℃(77℉). |
Specifications:
| Cells Per Unit | 3 |
| Voltage Per Unit | 6 V |
| Capacity | 34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) |
| Weight | Approx. 1.32kg(2.91 lbs) |
| Maximum Discharge Current | 130A (5 Sec) |
| Internal Resistance Approx. | Approx. 8.3 mΩ |
| Operating Temperature Range | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C±3°C(77°F±5°F) |
| Float Charging Voltage | 6.75 to 6.9 VDC/Unit Average at 25°C(77°F) |
| Recommended Maximum Charging Current Limit | 3.4A |
| Equalization and Cycle Service | 7.2 to 7.5 VDC/Unit Average at 25°C(77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | F2-Faston Tab250 |
| Container Material | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
CSB HRL634WF2
Data sheet
| Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell | 9 |
|---|---|
| Height (mm) | 98 |
| Width (mm) | 34 |
| Length (mm) | 151 |
| Battery Rated Nominal Voltage | 6 |
| Battery Mass (kg) | 2.5 |
| Battery Terminal Type | F2 Faston Tab 250 |
| Battery Technology | AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid) |
