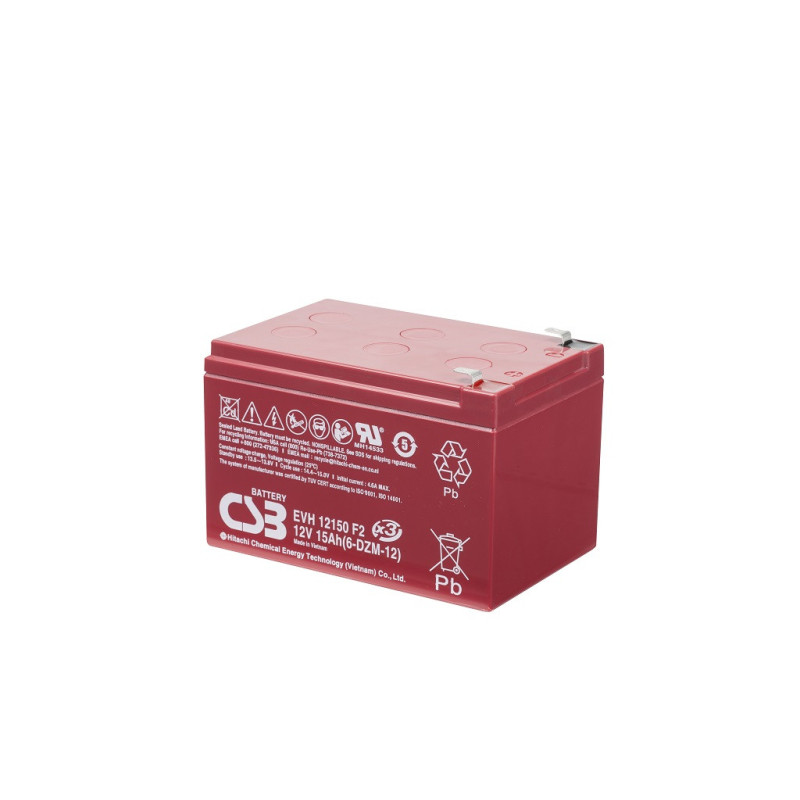

CSB 12V 15Ah Deep Cycle Traction Electric Vehicle VRLA AGM Battery EVH12150
R1,165.00
Tax included
CSB EVH12150 Deep Cycle AGM VRLA Traction Sealed Lead Acid Battery (Electric Vehicle)
5 Year Design Life
12 Volts
15 Amp Hours
Please contact us for quantity discounts
Email: info@createenergy.co.za or telephone: +(27) 11 888 0410
CSB EVH12150 Deep Cycle AGM VRLA Traction Sealed Lead Acid Battery (Electric Vehicle)
| 12 V | 15.0Ah |
| EVH 12150(3nd generation) is designed specially with increase cycle performance and reliability from previous generations in electric vehicles application. It has high cycling life, high efficiency and long service life. | |
EVH means Electric Vehicle H. This series focus on improving the cycle life and runtime that base on EVX series.
Main features as follows:
- The EVH battery is especially suited for electric vehicle and hand tools systems.
- When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
- With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
- With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
- Long life, low self-discharge rate and high reliability.
- It has safety, low resistance so recharge is easy and energy output is more remarkable.
- Container material could be frame retardant ABS with ranking UL 94V-0.
- Cycle use.
- High rate discharge construction.
- Deep discharge recoverability.
- Batteries are strictly tested by our patented computer charge/discharge system.
- ISO9001, 14001, OHSMS 18001 certified.
- UL recognized components under UL 1989 (file number MH14533).
- Complies with IATA/ICAO Special Provision A67 for air transport.
- Classified per MG Amendment 27 as a non-hazardous material for water transport.
- Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Applications
Cycle Use:
- Electric Vehicles
-
Golf carts
-
Portable telephone sets
-
Portable lighting equipment
-
Power tools, lawn mowers, vacuum cleaners
-
Portable measuring equipment
-
Portable VTR/TV, tape recorders and radios
-
Portable personal computers and processors
Solar Cell Power Generation:
-
Street lighting
- Portable power supply
-
Water pumping stations
-
Rural power systems
Test result might be different under various conditions. Please contact our regional sales managers for further information.
Specifications:
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 15.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight : | Approx. 4.60kg. (10.14 lbs.) |
| Maximum Discharge Current : | 180A (5 sec) |
| Internal Resistance Approx. : | Approx. 10.5 mΩ |
| Operating Temperature Range : | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range : | 25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage : | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit | 4.5 A |
| Equalization and Cycle Service : | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge : | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal : | F2-Faston Tab 250 |
| Container Material : | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
CSB EVH12150
Data sheet
| Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell | 15 |
|---|---|
| Height (mm) | 102 |
| Width (mm) | 98 |
| Length (mm) | 151 |
| Battery Rated Nominal Voltage | 12 |
| Battery Mass (kg) | 4.5 |
| Battery Terminal Type | F2 Faston Tab 250 |
| Battery Technology | AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid) |
