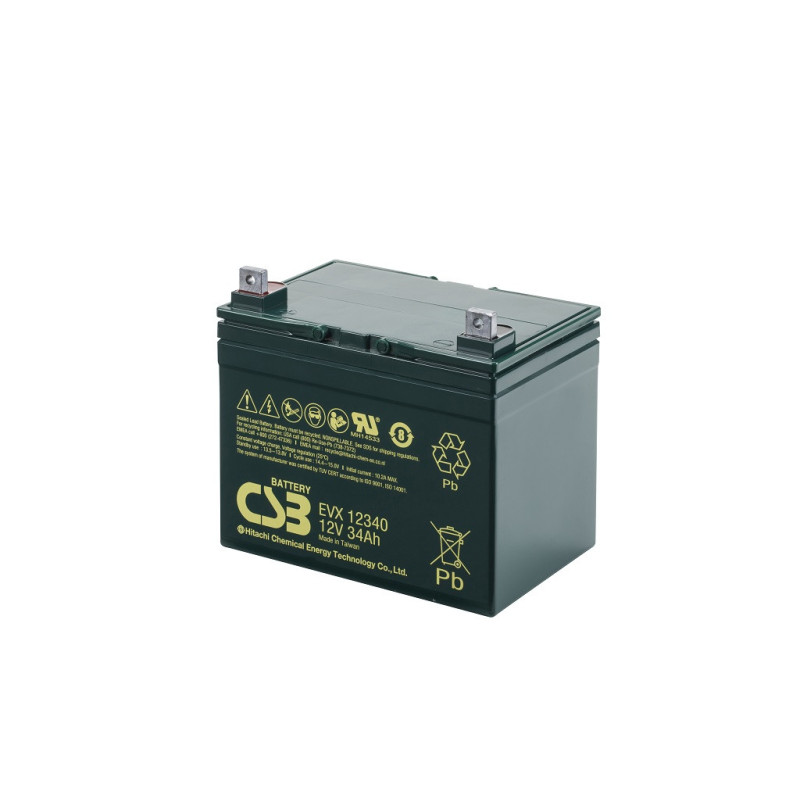

CSB 12 Volt 34Ah Deep Cycle Traction Electric Vehicle VRLA AGM Battery EVX12340
CSB EVX12340 Deep Cycle AGM VRLA Traction Sealed Lead Acid Battery (Electric Vehicle)
8 Year Design Life
12 Volts
34 Amp Hours
Please contact us for quantity discounts
Email: info@createenergy.co.za or telephone: +(27) 11 888 0410
CSB EVX12340 Deep Cycle AGM VRLA Traction Sealed Lead Acid Battery (Electric Vehicle)
| 12 V | 34.0Ah |
| EVX 12340 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life. | |
Main features as follows:
EVX means Electric Vehicle X (the meaning of Roman numeral X is satisfactory and plentiful). This series is a modern hi-tech energy application product.
- The EVX battery is especially suited for electric vehicle and hand tools systems.
- When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
- With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
- With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
- Long life, low self-discharge rate and high reliability.
- It has safety, low resistance so recharge is easy and energy output is more remarkable.
- Cycle use.
- High rate discharge construction.
- Deep discharge recoverability.
- Batteries are strictly tested by our patented computer charge/discharge system.
- ISO9001, 14001, OHSMS 18001 certified.
- UL recognized components under UL 1989 (file number MH14533).
- Complies with IATA/ICAO Special Provision A67 for air transport.
- Classified per MG Amendment 27 as a non-hazardous material for water transport.
- Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
Applications
Cycle Use:
- Electric Vehicles
-
Golf carts
-
Portable telephone sets
-
Portable lighting equipment
-
Power tools, lawn mowers, vacuum cleaners
-
Portable measuring equipment
-
Portable VTR/TV, tape recorders and radios
-
Portable personal computers and processors
Solar Cell Power Generation:
-
Street lighting
- Portable power supply
-
Water pumping stations
-
Rural power systems

Test result might be different under various conditions. Please contact our regional sales managers for further information.
Specifications:
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 34 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight | Approx. 10.77 kg. (23.74 lbs..) |
| Maximum Discharge Current | 400A(5 sec) |
| Internal Resistance Approx. | Approx. 9.2mΩ |
| Operating Temperature Range | Discharge:-15℃~50℃(5°F~122°F) Charge:-15℃~40℃(5°F~104°F) Storage:-15℃~40℃(5°F~104°F) |
| Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit | 10.2A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| Terminal | B5-L terminal to accept M6 nut & bolt |
| Container Material | ABS(UL94-HB) |
Data sheet
| Battery Rated Capacity Amp-hour @20 Hr Rate to 1.6Volts per Cell | 34 |
|---|---|
| Height (mm) | 178.3 |
| Width (mm) | 130 |
| Length (mm) | 195.6 |
| Battery Rated Nominal Voltage | 12 |
| Battery Mass (kg) | 10.5 |
| Battery Terminal Type | B5-L terminal to accept M6 nut & bolt |
| Battery Technology | AGM (Absobed Glass Mat) Sealed VRLA (Valve Regulated Lead Acid) |
