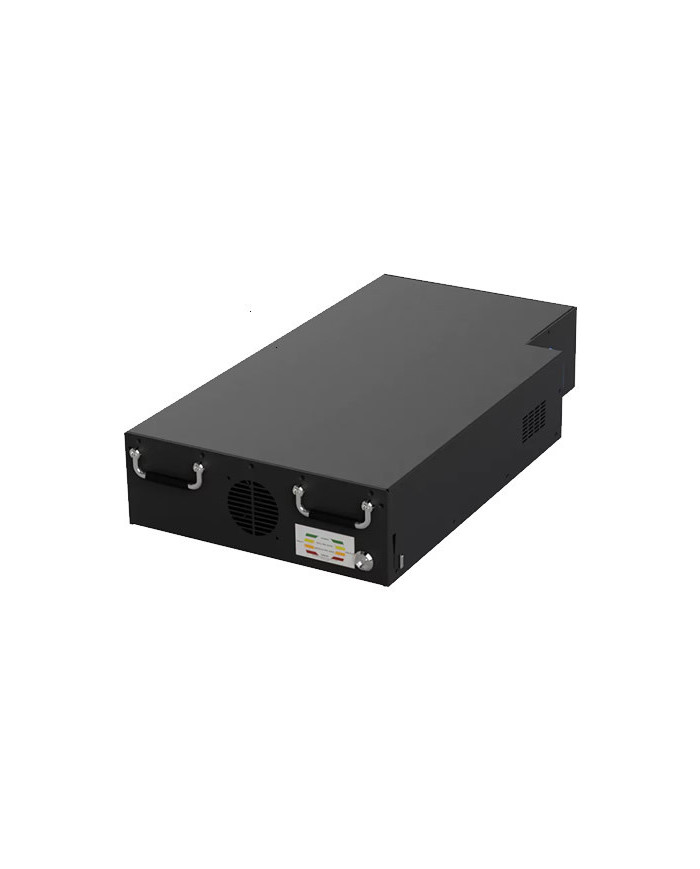

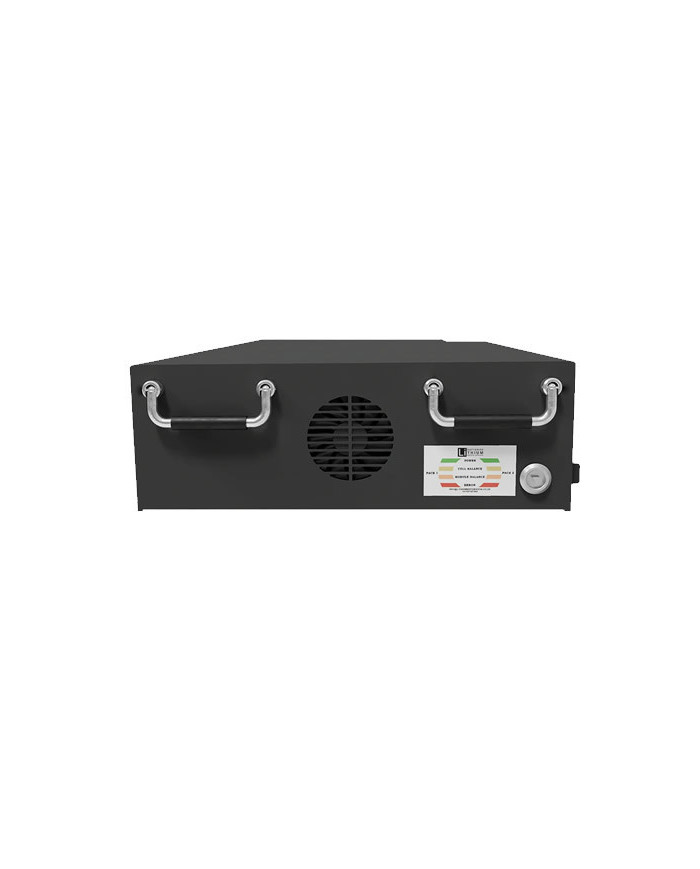

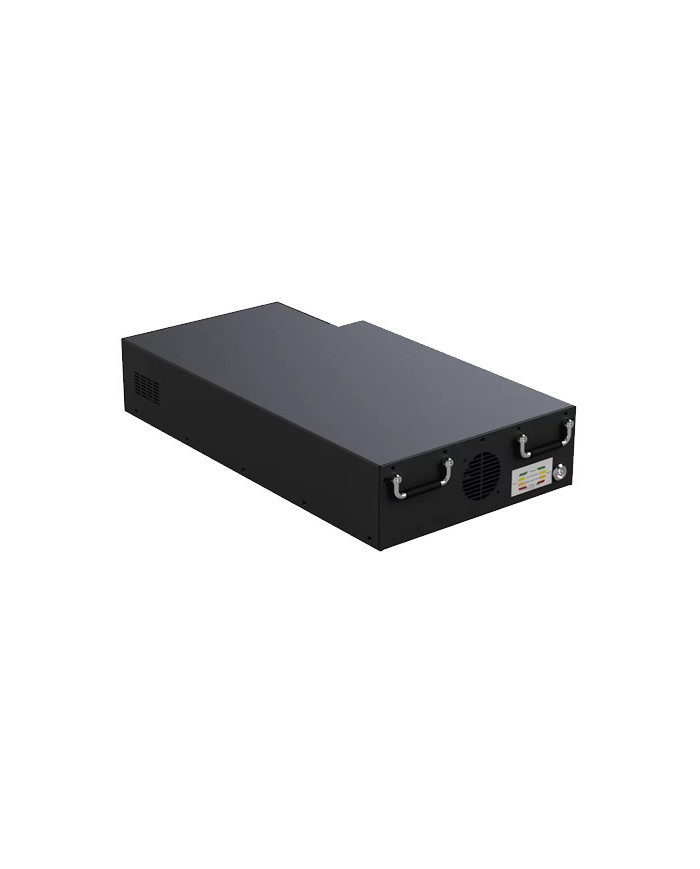

HV-104-WFRE Module

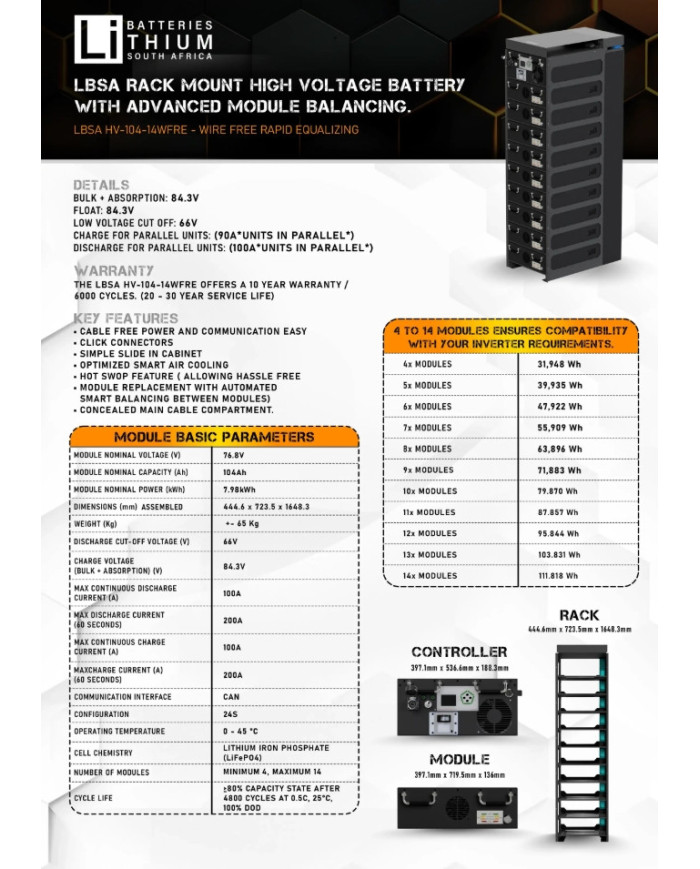

Details:

Module Nominal Voltage: 76.8V
Module Nominal Capacity: 104Ah

Module Nominal Power: 7.98kWh

Module Dimensions: 397.1mm X 719.5mm X 136mm

Dimensions assembled: 444.6mm x 723.5mm x 1648.3mm
Weight per module: +- 65kg
Discharge cut-off per module: 66VDC

Charge Voltage (Bulk and Absorption): 84.3V

Max continuous discharge current: 100A

Max Peak Discharge Current (60 seconds): 200A

Max Continuous Charge Current: 100A

Max Peak Charge Current (60 Seconds) 200A

Communications Interface: CAN Bus
COnfiguration: 24S

Operating Temperature: 0 - 45 Degrees Celcius

Cell Chemistry: Lithium Iron Phosphate (LiFePO4)

Number of modules: Minimum 4, Maximum 14
Cycle Life: More than or equal to 80% capacity state after 4800 cycles at 0.5C, 25 Degrees Celcius, 100% Depth of Discharge

CONCEALED MAIN CABLE COMPARTMENT

IP67 rated communication and power connections.

COMMUNICATION FAILOVER

If a battery fails, communication continues to work from one of the other batteries ensuring no single point of failure.

BATTERY MEASUREMENTS

The total system height is: 1648.3 mm, with a width of 723.5 mm & a depth of 444.6 mm.

EASY MODULE REPLACEMENT

Easy module replacement with built-in module balancing.

AIR-COOLED

Each module has its own air cooling system for heat dissipation.

BATTERY HOT ADDING

Active battery synchronizing for both charge and discharge.

NO-CONNECTION STACKING

This easy, no-connection stacking design ensures a simple, fast, and safe commissioning of batteries.

ADVANCED THERMAL CONTROL

With a built-in DC inverter, the battery can cool itself down in high-temperature environments and heat itself in cold-temperature environments.

UP TO 60 UNITS IN PARALLEL

Add up to 60 units in parallel without a master/controller.

Link to the HV Manual: LBSA HV MANUAL
