LBSA 614.4VDC 104Ah 63.9kWh High Voltage HV Battery Cluster
Lithium Batteries South Africa 614.4VDC 104Ah 63.9kWh Battery Cluster
Includes Rack, 8 X HV Modules and Controller
PLEASE CONTACT US FOR SHIPPING PRICING
PLEASE CONTACT US FOR SHIPPING PRICING
LBSA 614.4VDC,104Ah,63.9kWh Battery Cluster
Include Rack, 8 X HV Modules and Controller

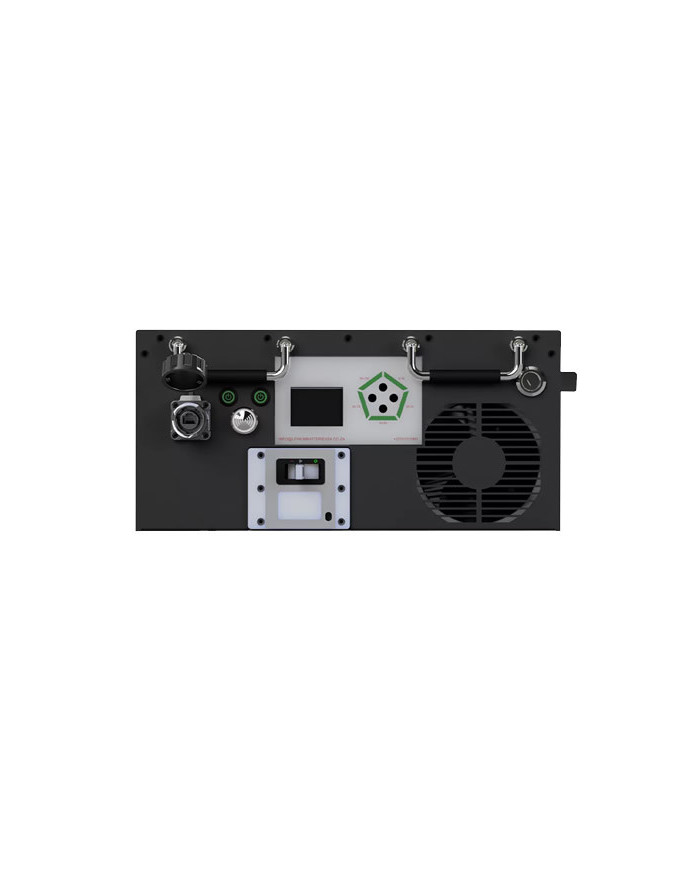

HV-104-WFRE Controller
HV-104WFRE Battery
Introducing the HV-104-WFRE battery, a locally engineered and manufactured energy storage solution that combines advanced technology with superior safety features. Designed for scalability and reliability, the HV-104WFRE is ideal for a wide range of high-demand applications.
Details
Scalable to Megawatt Capacity: Stackable from a minimum of 23.9 kWh to 111.8 kWh and can be paralleled up to 60 stacks. to expand your system and scale as needed
Advanced Air-Cooling: Equipped with a state-of-the-art air-cooling system, the HV-104WFRE maintains optimal operating temperatures to ensure peak performance and extend battery life, even in demanding environments.
Fire Safety: The integrated fireblock in the controller provides enhanced fire suppression, ensuring an additional layer of safety and protection for your energy storage system.
Local Engineering and Manufacturing: Proudly developed and produced locally, the HV-104WFRE battery reflects high standards of quality and reliability, tailored to meet the needs of local business, farms and high demanding residential sites.

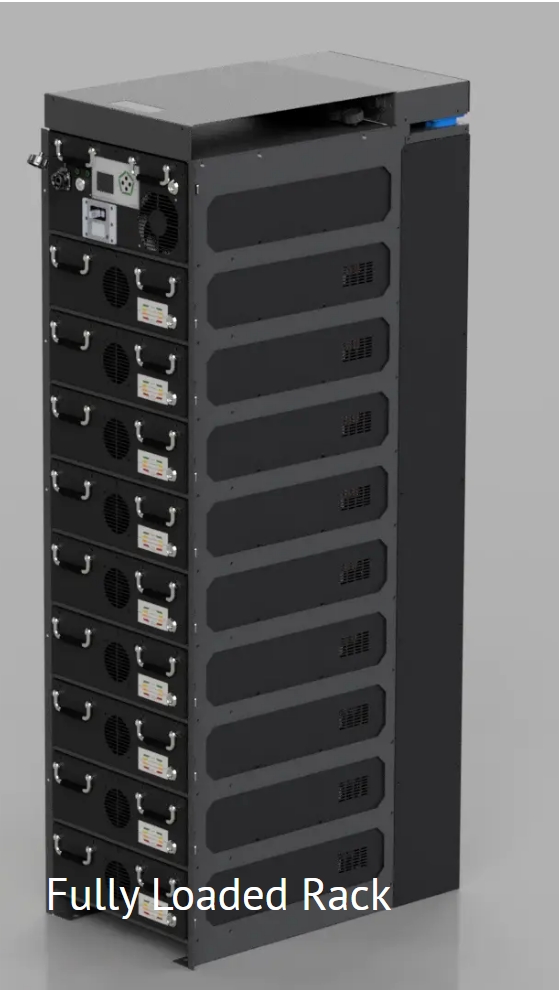

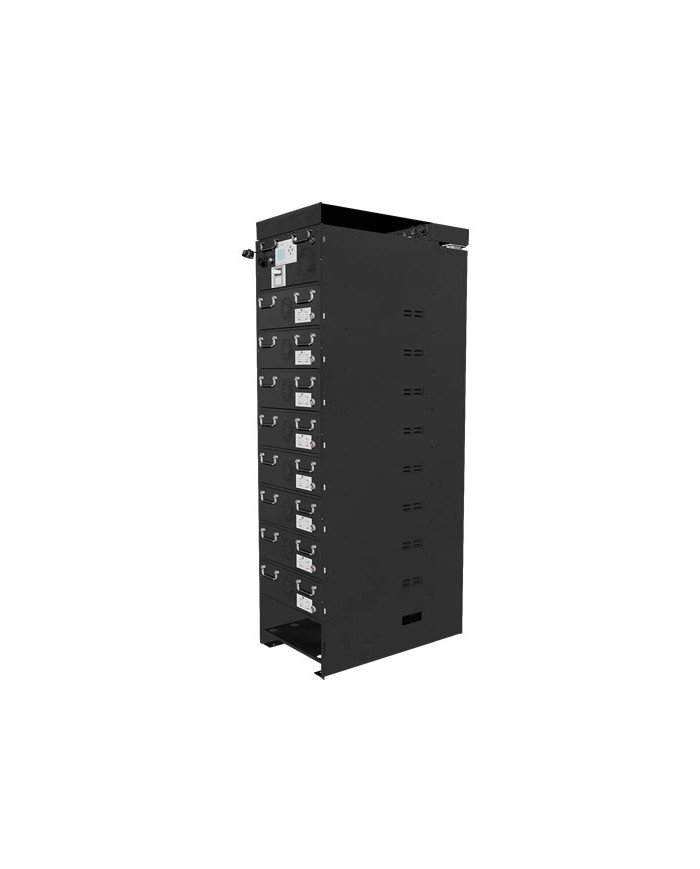

HV104-WFRE Rack
Designed for HV104-14WFRQ Modules: Specifically designed for HV104-14WFRE modules and controllers, this steel rack integrates seamlessly with built-in click connectors, offering a clean, cable-free appearance.
It also has a concealed main cable compartment, adding to the wire-free look.
One rack can hold 14 modules and 1 controller.

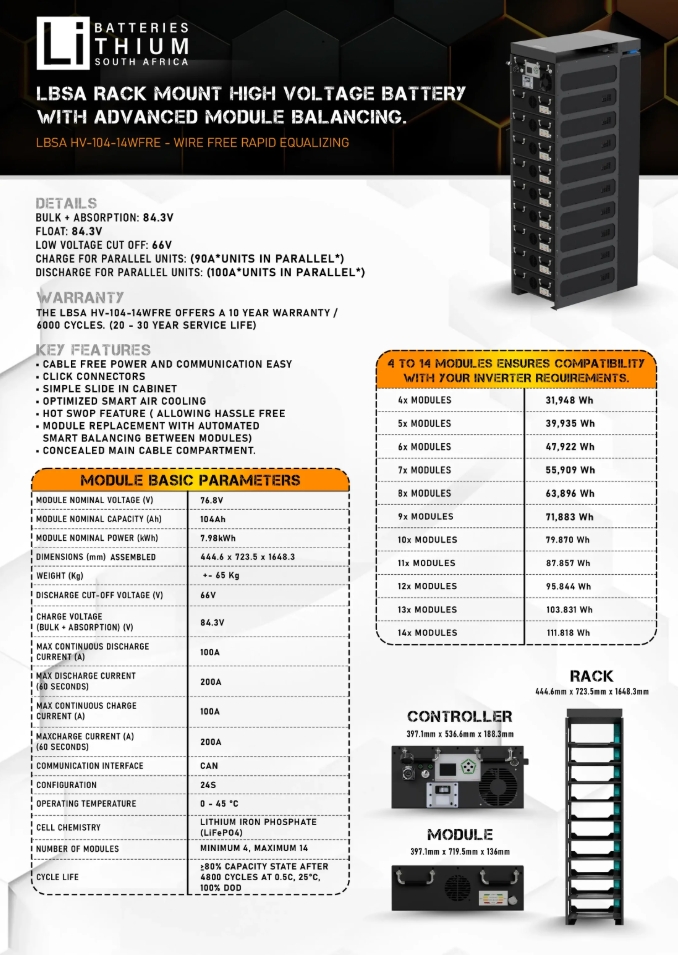

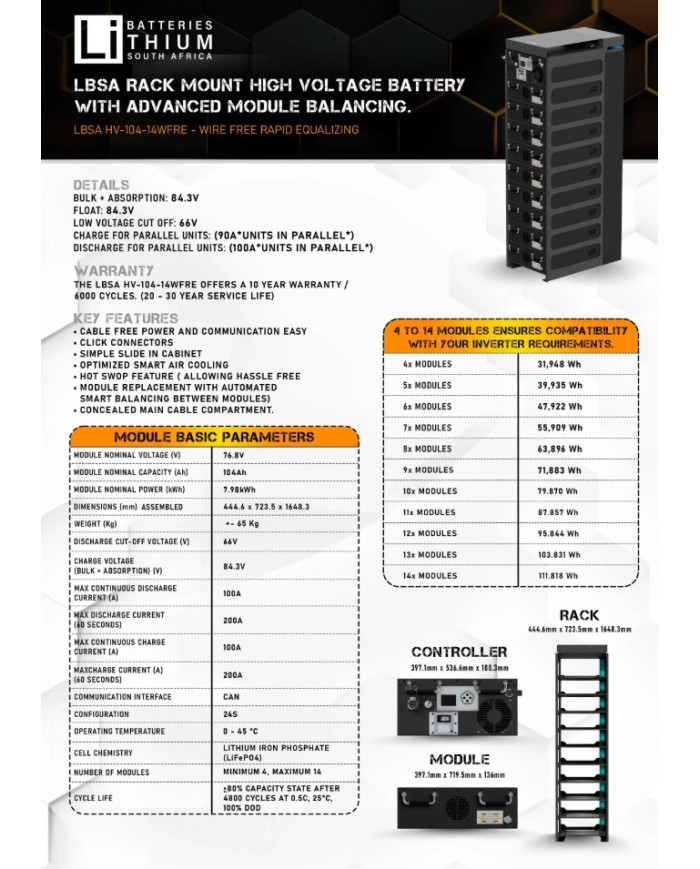

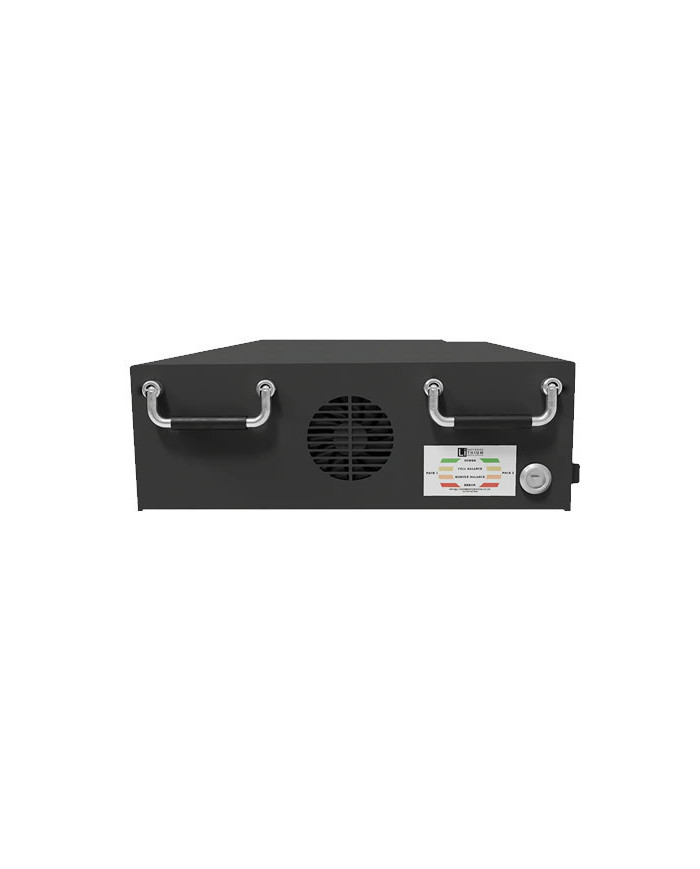

HV-104-WFRE Module
Details:
Module Nominal Voltage: 76.8V
Module Nominal Capacity: 104Ah
Module Nominal Power: 7.98kWh
Module Dimensions: 397.1mm X 719.5mm X 136mm
Dimensions assembled: 444.6mm x 723.5mm x 1648.3mm
Weight per module: +- 65kg
Discharge cut-off per module: 66VDC
Charge Voltage (Bulk and Absorption): 84.3V
Max continuous discharge current: 100A
Max Peak Discharge Current (60 seconds): 200A
Max Continuous Charge Current: 100A
Max Peak Charge Current (60 Seconds) 200A
Communications Interface: CAN Bus
COnfiguration: 24S
Operating Temperature: 0 - 45 Degrees Celcius
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Number of modules: Minimum 4, Maximum 14
Cycle Life: More than or equal to 80% capacity state after 4800 cycles at 0.5C, 25 Degrees Celcius, 100% Depth of Discharge

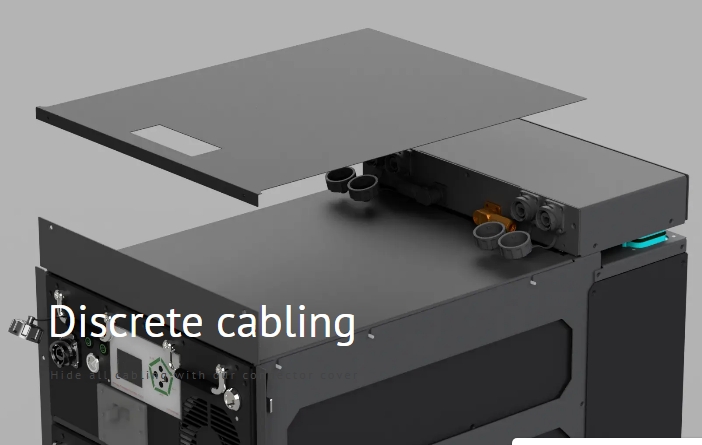

CONCEALED MAIN CABLE COMPARTMENT
IP67 rated communication and power connections.
COMMUNICATION FAILOVER
If a battery fails, communication continues to work from one of the other batteries ensuring no single point of failure.
BATTERY MEASUREMENTS
The total system height is: 1648.3 mm, with a width of 723.5 mm & a depth of 444.6 mm.
EASY MODULE REPLACEMENT
Easy module replacement with built-in module balancing.
AIR-COOLED
Each module has its own air cooling system for heat dissipation.
BATTERY HOT ADDING
Active battery synchronizing for both charge and discharge.
NO-CONNECTION STACKING
This easy, no-connection stacking design ensures a simple, fast, and safe commissioning of batteries.
ADVANCED THERMAL CONTROL
With a built-in DC inverter, the battery can cool itself down in high-temperature environments and heat itself in cold-temperature environments.

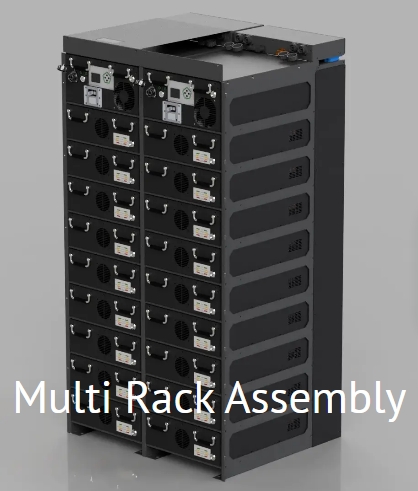

UP TO 60 UNITS IN PARALLEL
Add up to 60 units in parallel without a master/controller.
Link to the HV Manual: LBSA HV MANUAL
