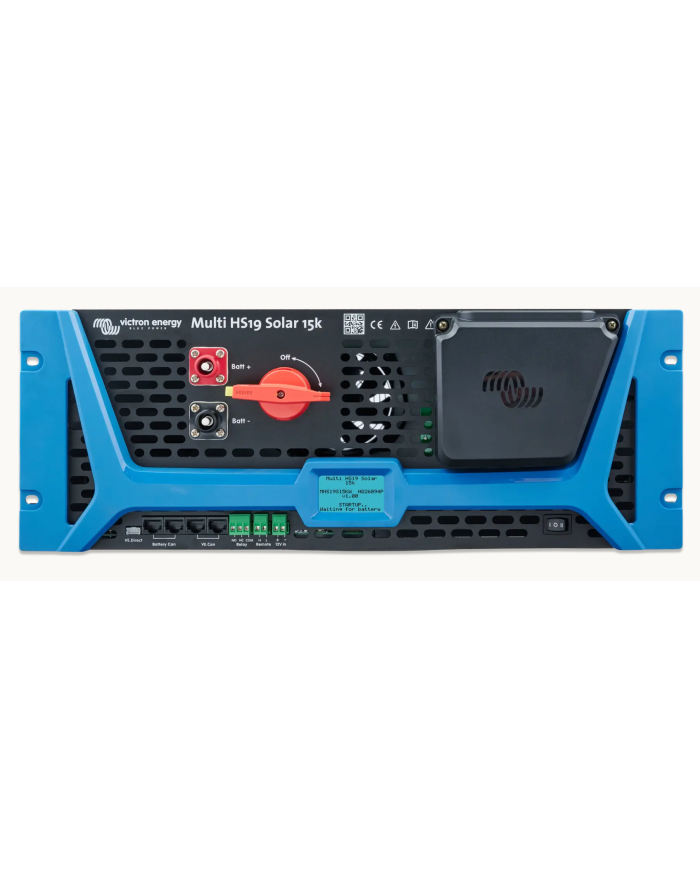

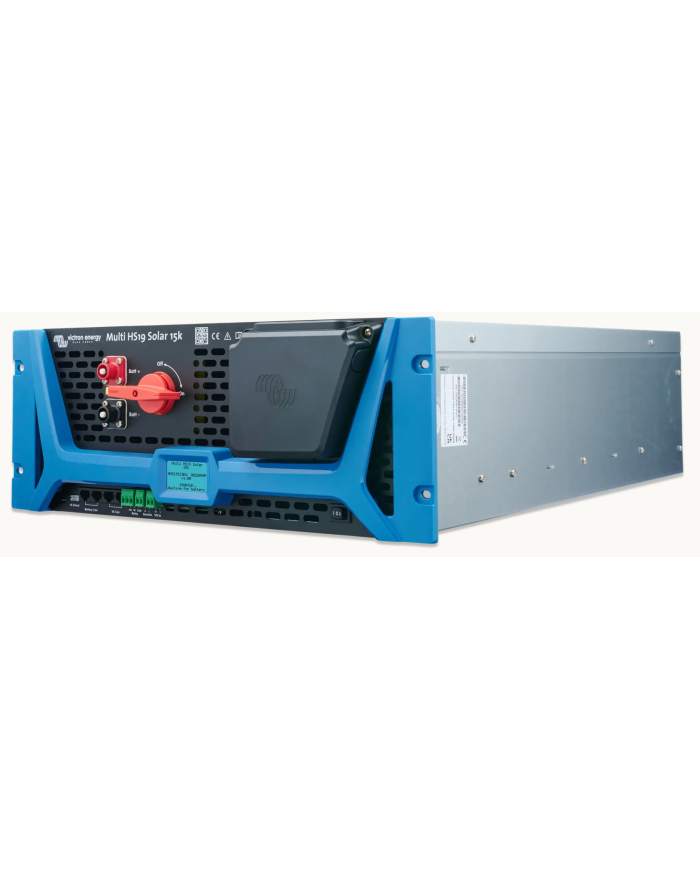

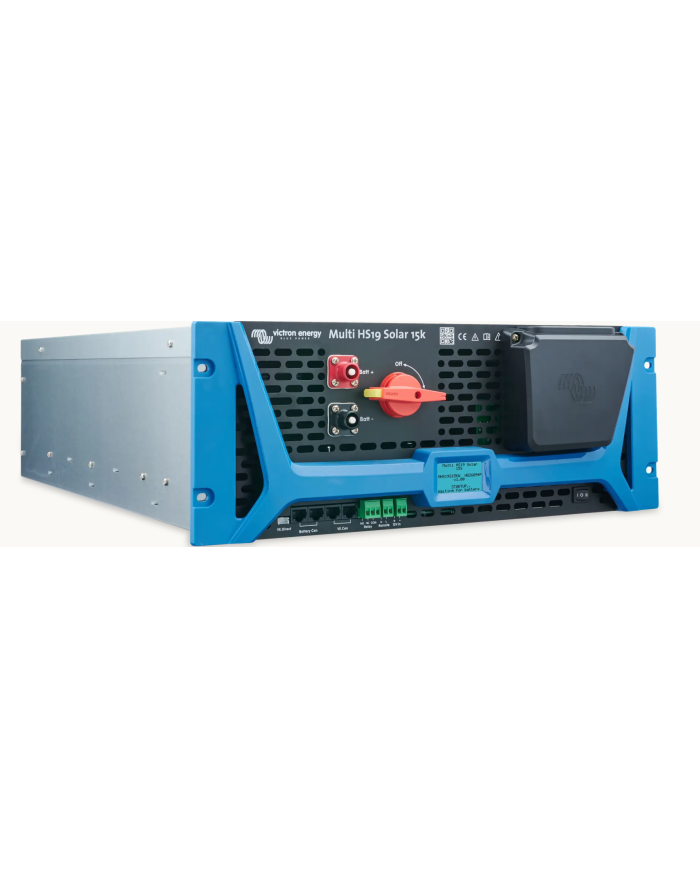

Victron Multi HS19 Solar 15kW rack mountable three-phase Inverter/Charger
Victron Multi HS19 15kW (COMING SOON)
Built for 650-1000V systems, the Multi HS19 Solar 15k combines 3-phase power, battery charging, and solar tracking in a single 19-inch rack unit. High-voltage operation reduces current, cabling, and losses; enabling more compact systems, faster installation, and high efficiency within the Victron ecosystem.
Four independent built-in MPPT trackers, each handling up to 8 kW, allow four separate solar arrays to be installed at different orientations, making the most of available roof space. Ready for off-grid, backup, peak-shaving, and grid-tied applications.
Victron Multi HS19 15kW (COMING SOON)
- Three-Phase Inverter / Charger
- 800V High Voltage
- 4 MPPT trackers, totalling 32kWp solar
- 19" Rack mountable
- VE.Can, VE.Direct and VictronConnect
- 15000VA 800V
Introducing the Victron Multi HS19 Solar
A 19-inch enclosure combining a 15kW high-voltage 3-phase inverter/charger and four MPPT high voltage solar trackers rated at 8kW. The integrated design simplifies installations, saving time and money. Lightweight, efficient, and quiet in operation with low standby power consumption due to high-frequency technology and a new design. Easy mounting with the 19- inch housing, sliding into the same rack as the batteries.
Versatile
Ideal for off-grid, peak-shaving, backup, or feed-in applications.
Powerful inverter/charger
The Multi HS19 Solar features a powerful sinewave inverter/charger at its core with seamless transitions between inverting, grid feed-through, and charging. This bidirectional capability allows charging the battery when excess solar power or AC supply is available or converting from the battery when needed.

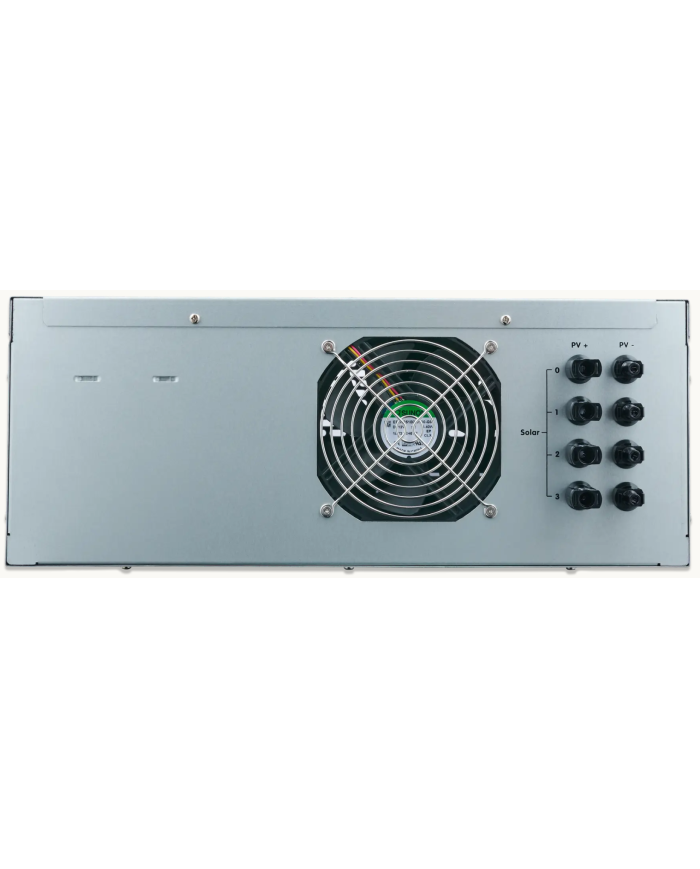

Four individual solar inputs
Four individual 8kW, MPPT solar trackers with a wide MPPT voltage range of 100-600V and a 300V startup voltage, totalling a PV capacity of 32kW at 600V.
Battery
Connects to managed CAN-bus batteries via dedicated Battery CAN-bus ports. Supports battery banks from 650 up to 1000V, reducing battery cable thickness and installation costs. Supports a maximum charge power of 33kW at 800V.
Communication and Control
Comprehensive monitoring options include a display for reading operational status, Bluetooth connectivity via the VictronConnect app for configuration, VE.Can communication port for remote monitoring via a GX device on the VRM portal. Equipped with a remote on/off terminal and programmable relay for automated actions, such as starting a generator when the battery is low.
