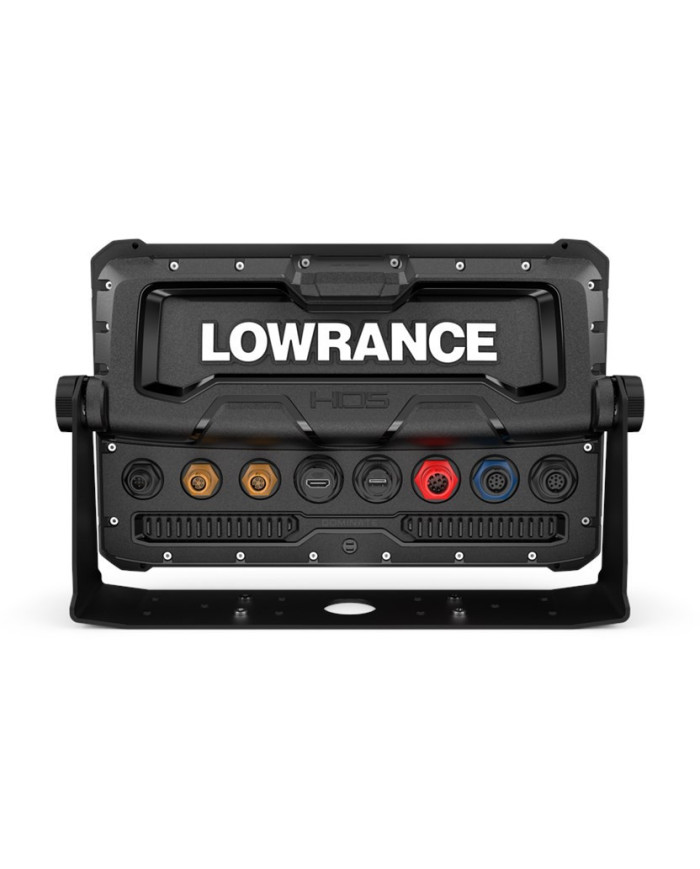

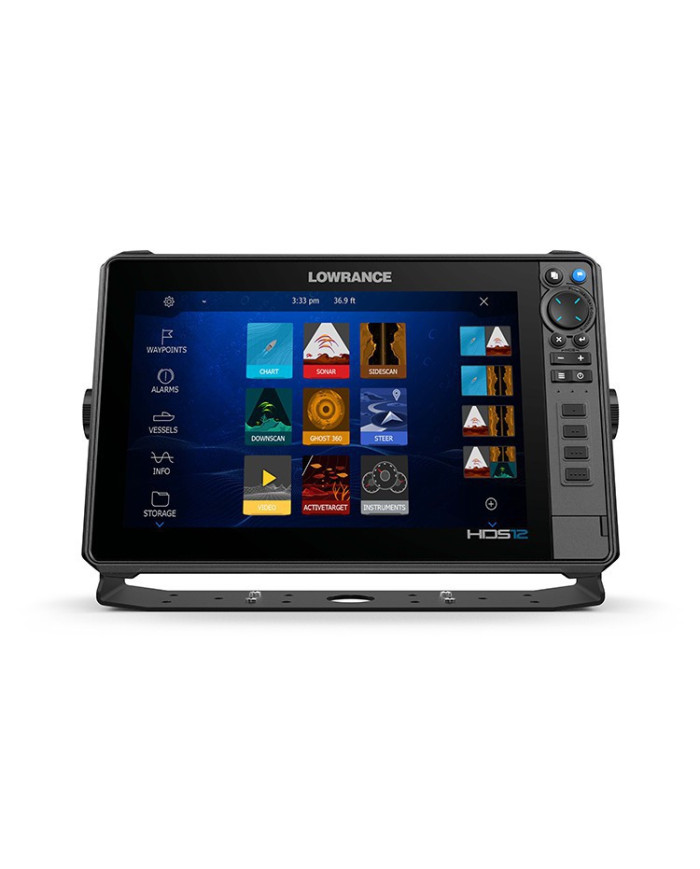

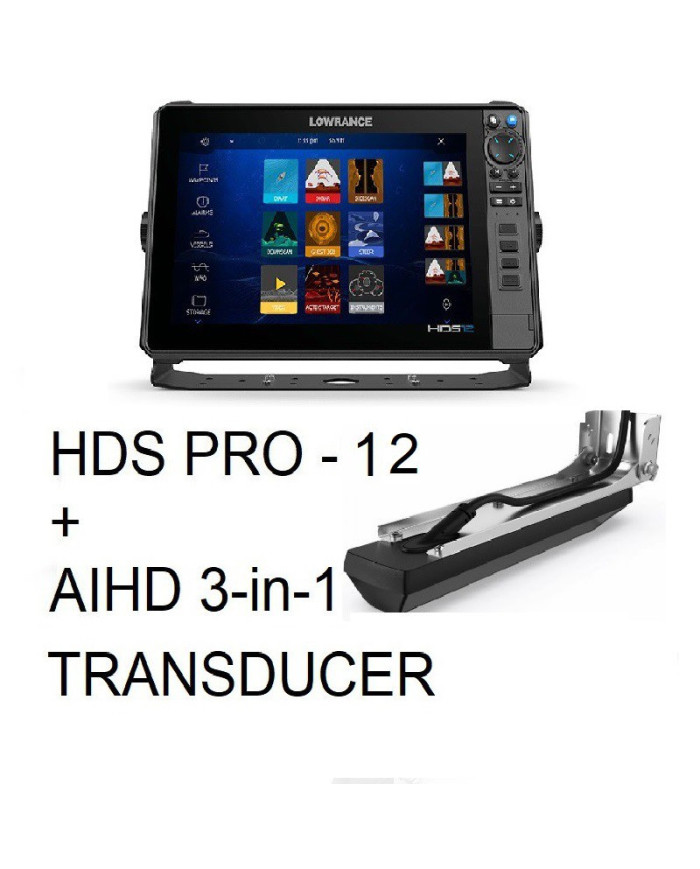

Lowrance HDS PRO 12 AIHD 3-in-1 Transducer Fishfinder Chartplotter Combo

R78,770.00
Tax included

Lowrance HDS PRO 12 AIHD 3-in-1 Transducer Fishfinder Chartplotter Combo

12 in SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging HD. Networkable to Lowrance performance sonars (ActiveTarget and ActiveTarget2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide basemap (chart card required).

AIHD 3-in-1 (Standard) Transducer included.

Online only
Description

Lowrance HDS PRO 12 AIHD 3-in-1 Transducer Fishfinder Chartplotter Combo

SAVE UP TO ZAR 9500

Lowrance HDS Pro Special Offer

12 in SolarMAX HD IPS display, Dual 1kW sonar with CHIRP, ActiveImaging HD. Networkable to Lowrance performance sonars (ActiveTarget and ActiveTarget2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. Worlwide basemap (chart card required).

AIHD 3-in-1 (Standard) Transducer included.

See more and catch more with HDS® PRO, the ultimate fishfinding tool. With built-in support for the new, ultra high-definition Active Imaging™ HD and the new, highest-resolution live sonar ActiveTarget® 2 you’ll see more clearly and find more fish than ever before.

SEE MORE. CATCH MORE.

Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.

NEW LOWRANCE SONAR

Key Features

SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses

New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)

New! High-resolution ActiveTarget® 2 Live Sonar ready

FishReveal™ with new SideScan view, as well as Downscan*

Available in 9, 10, 12 and 16-inch display size

Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap

Real-time mapping available with C-MAP® Genesis Live.

Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views

Large programmable keys for 10, 12 and 16-inch sizes

Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot

NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications

Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and a compatible transducer

Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.

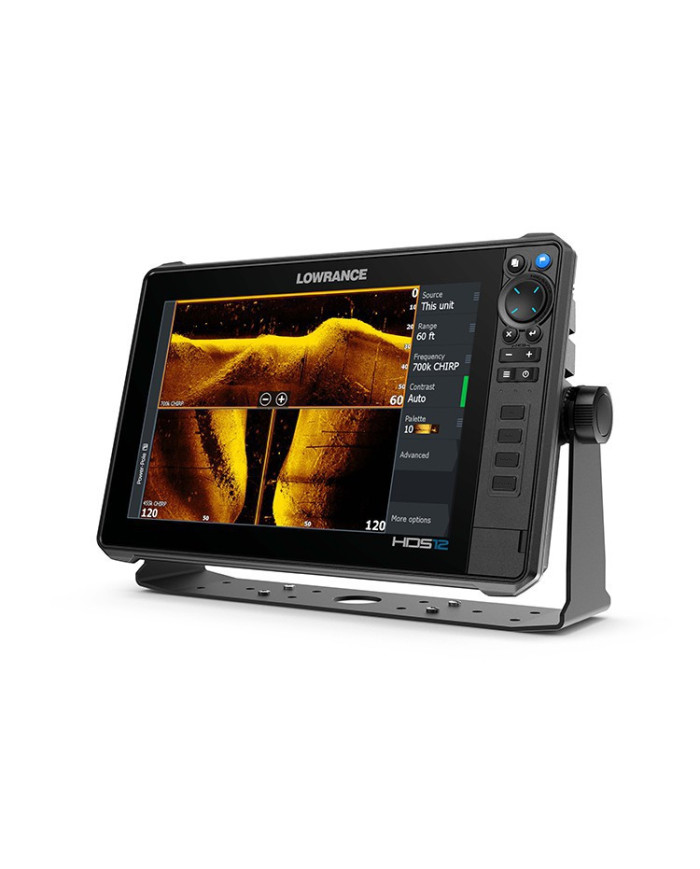

ACTIVE IMAGING™ HD

Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.

Active Imaging HD

Active Imaging HD

FISHREVEAL™

FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to

the sides and beneath the boat.

*SideScan with FishReveal™ requires S3100 module and AI 3-in-1 HD Transducer

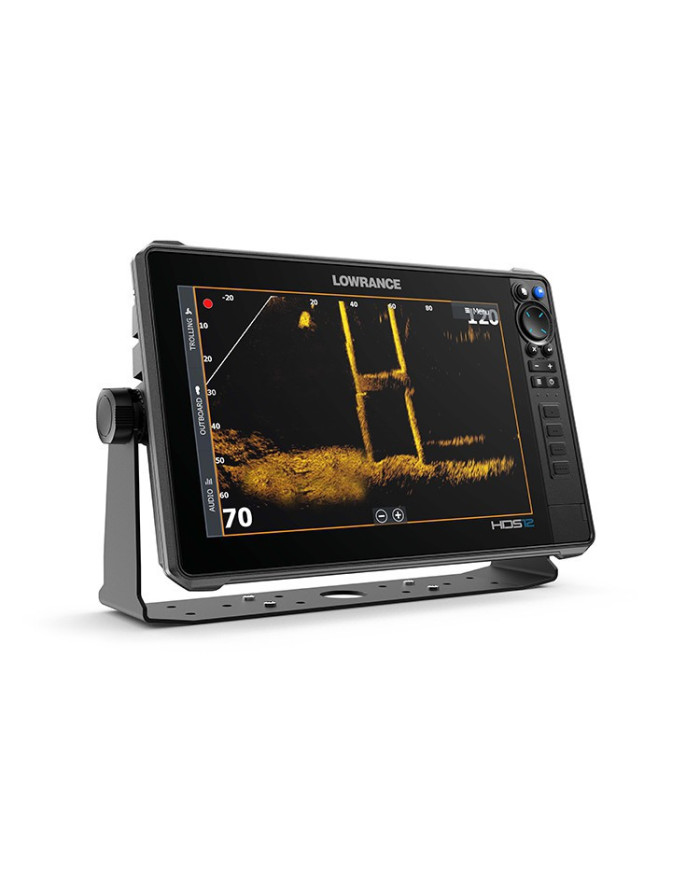

ACTIVETARGET® 2 LIVE SONAR

ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.

ActiveTarget 2

ActiveTarget 2

ADDITIONAL LIVE SONAR VIEWS

HDS® PRO also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple

views simultaneously, and to widen Front and Scout modes for better bait tracking.

NEW CHART OVERLAY

HDS® PRO also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode

or Ghost® 360 trolling motor mode directly on the chart screen.

Chart Overlay

C-MAP Charts

THIRD-PARTY COMPATIBILITY

For anglers that want to select their own chart, HDS® PRO supports a wide range of third-party chart options,

including C-MAP®, Navionics®, Florida Marine Tracks Fishtec and, of course BASSCOZA Hi Def Sattelite Overlays.

BUILT-IN SUPPORT

HDS® PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar

and Active Imaging™ HD to touchscreen control of Lowrance Ghost®, Motorguide and Power-Pole Move Trolling Motors,

and, Power-Pole® Anchors and more.

Connectivity

CONNECTIVITY

Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM®

Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

Plug-and-play

PLUG 'N PLAY

Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® PRO can also be expanded to deliver additional views and features.

With plug-and-play installation, expanding your fishing has never been easier.

FishReveal™ SideScan

FishReveal™ SideScan

Simply add an S3100 sonar module and compatible Active Imaging™ HD transducer to enable the new FishReveal™ S

ideScan view, making it easier to identify fish to the sides of the boat.

Multiple live sonar views

SCOUT WIDE VIEW

SCOUT WIDE VIEW

ULTIMATE CLARITY

Multiple live sonar views

Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar

displays at the same time.

Display

Backlight Color Pure White LED
Display Resolution 1280 x 800
Screen Brightness >1200 Nits
Viewing Angles 80° top/bottom, 80° left/right

Electrical

Power Consumption max 3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min 2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical 2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating 5A
Supply Voltage 12 v DC (10.8-17 V DC)

Physical

Dimensions W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight 6.5lb (2.95kg)
Compass Safe 1.6 ft (50 cm)
Mounting Type Panel mount or bracket mount

Environment

Humidity 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed

Interface

Touchscreen Full Multi-touch touchscreen
Keypad 8-way directional keypad
User programable keys 4
Buttons Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light

Connectivity

Bluetooth® 5.2 with support for Bluetooth® classic

Ethernet Ports 2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000 1x Micro-C
SD Card Storage 2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183 via Power cable

Video

Output None
Composite video 1 xRCA – single channel via an optional adaptor cable
HDMI 1 port for external input (HDMI® 1.4 sink and HDCP)

GPS

Correction DGPS, WAAS
GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10 Hz

MFD

Sonar Compatibility Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar All HALO Radars
Weather SiriusXM via WM-4 (USA only)
AIS AIS Chart and Radar overlay. Target vessel details.
Autopilot NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching CZone, Naviop, DDS
GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage 8.0 GB Internal
Multimedia SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power 1kW
Waypoints, Routes, Tracks 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5 Support for third part HTML apps
Autopilot Maneuvers Turn Patterns Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes Course, Heading, Waypoint, Power Steer

Transmit and Receive:

NMEA 0183 Sentences supported

GPS Receive GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX
Navigation Receive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX
Sonar Receive DBT DPT MTW VLW VHM, Transmit DBT DPT MTW VLW VHMTX / RX
Compass Receive HDG HDT HDM, Transmit HDGTX / RX
Wind Receive MWV MWD, Transmit MWV MWDTX / RX
AIS / DSCReceive DSC DSE VDM

 Approvals

Approvals Compliance FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

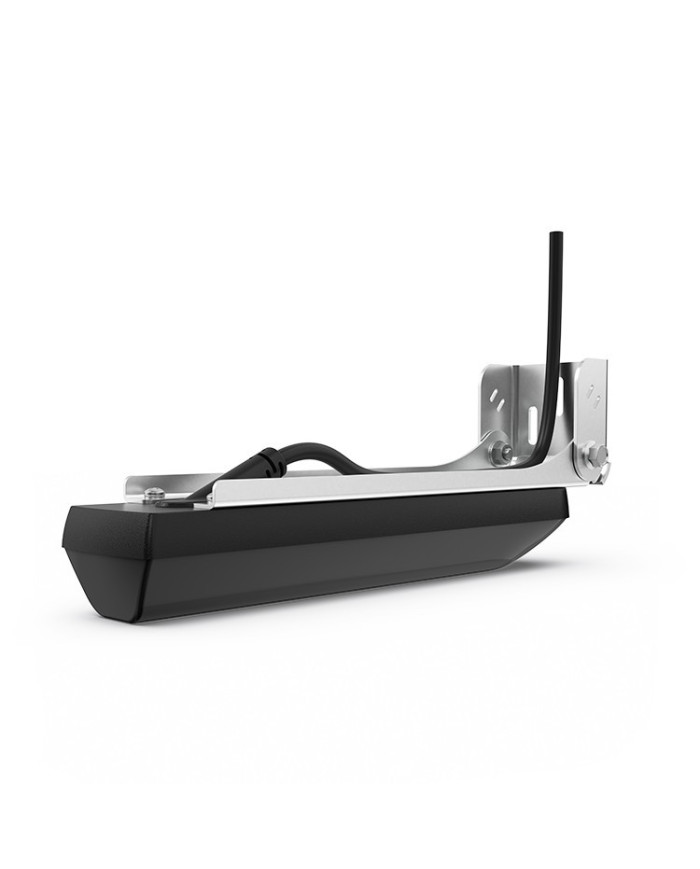

ActiveImaging HD™ 3-in-1 Transducer

SKU: 000-16062-001

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images

of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan and DownScan Imaging™, plus a

FishReveal™ DownScan view that makes fish easier to identify below the boat

Key Features

High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure

Lowrance® CHIRP with superb clarity and target separation

FishReveal™ DownScan view makes fish identification easy

Supports Medium and High CHIRP (83/200kHz) en 455/700/1000/1200 KHz frequencies

Smart transducer design boosts signal clarity

Compatible directly with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon and Elite FS

Specifications

Environment: Humidity60°C, 95% relative humidity (RH) for 18 hours

Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )

Shock Vibration: 100,000 cycles of 20 G

Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )

Waterproofrating: P67

Mounting Type: Transducer Bracket Mount

Weight Transducer: 2.67 lbs (1.21 kg)

Other

Interface: Direct Connect to HDS Pro (Requires S3100 Module for Down Scan Fish Reveal)

Via S3100 Module and Ethernet to: *HDS Live *Elite FS *

Warranty Period: 2 Years when bought in Bundle

Product Details
Lowrance
000-15988-001
