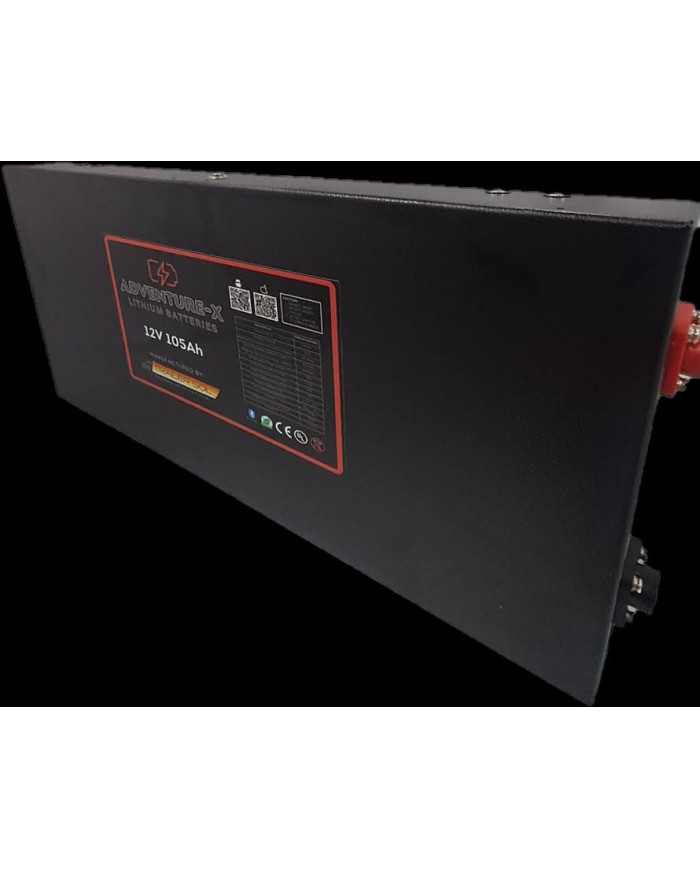

Adventure-X Super Slimline 12.8V 105Ah Lithium Battery With Bluetooth BMS

Adventure-X 12.8V 105Ah Super Slimline Lithium Battery With Bluetooth BMS

by Trailersol

The New Slimline range of Adventure-X Lithium Iron Batteries allows for a more portable power solution for your off-road adventures.

Only 60mm in width , this battery is suitable for behind the seat installations and where space is limited

Specifications

Capacity: 105 Ah

Nominal Voltage: 12.8 V

Maximum Continuous Discharge Current: 100 Amps

Peak Discharge Current (10 sec): 120 Amps

Maximum Continuous Charge current: 60 Amps

Weight: 12.5 kg

Short Circuit Protection: Yes

Over Voltage Protection: Yes

Under Voltage Protection: Yes

Over Current Protection: Yes

Case Material: Powder Coated Steel

Dimensions: 620mm x 250mm x 60mm

Performance

Charge Temperature: 0°C- 65°C

Discharge Temperature: -10°C- 65°C

Number of Cycles (100% DOD): 4000

Warranty: 5 Years

Standard Warranty: 5 Years / 5000 cycles (Whichever comes first) manufacturer's limited carry in warranty (Owing to normal use and installation as per specifications, installation manuals, local laws and regulations)

Depth of discharge: 90%

All Adventure-X Batteries are rated at 1C Discharge Rates - 0.8C Charge Currents

Steel Powder Coated batteries have high current output terminals

All slimline batteries come with Hexsert mounting points
All batteries have bluetooth enabled BMS for monitoring

*Specifications might be subject to change by the manufacturer
