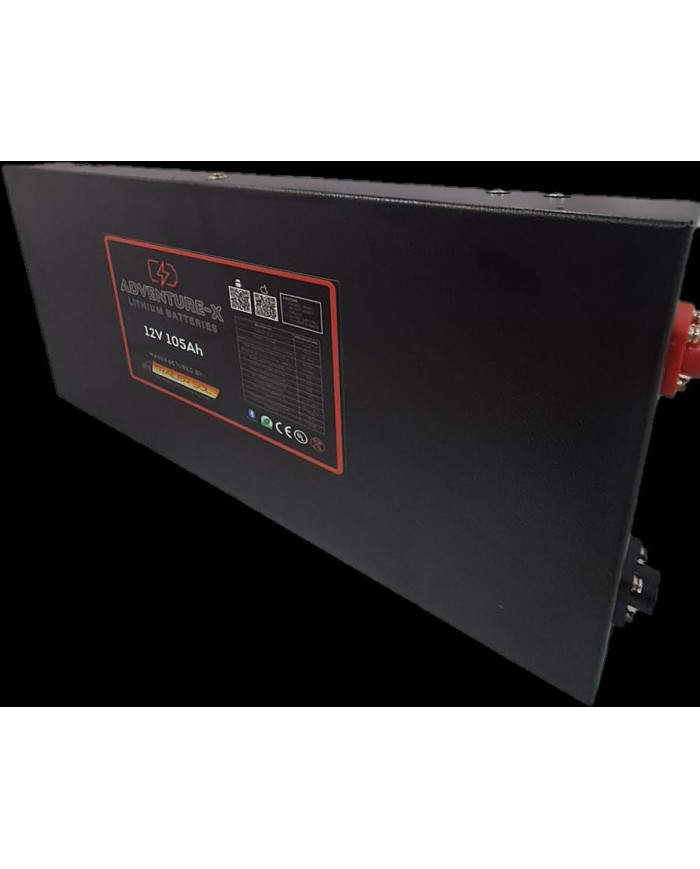

Adventure-X Super Slimline 12.8V 105Ah Lithium Battery 12.8V 105Ah Victron VE

Adventure-X 12.8V 105Ah Slimline Lithium Battery With Victron CANBUS BMS

by Trailersol

The New Slimline range of Adventure-X Lithium Iron Batteries allows for a more portable power solution for your off-road adventures.

VICTRON CANBUS BMS to communicate with Venus GX (Cerbo / Ekrano) Device for Monitoring, Management & Control Integration with Victron Inverter Chargers, DC to DC Chargers and Solar Charge Controllers

Only 60mm in width , this battery is suitable for behind the seat installations and where space is limited

Specifications

• Capacity: 105 Ah
• CANBUS port for Victron communication to Victron GX Device
• Comes with a 3 meter communication cable
• Nominal Voltage: 12.8 V
• Maximum Continuous Discharge Current: 100 Amps
• Peak Discharge Current (10 sec): 120 Amps
• Maximum Continuous Charge current: 60 Amps
• Weight: 12.5 kg
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Under Voltage Protection: Yes
• Over Current Protection: Yes
• Dimensions: 620mm x 250mm x 60mm
• Case Material: Powder Coated Steel

Performance

• Charge Temperature: 0°C- 65°C
• Discharge Temperature: -10°C- 65°C
• Number of Cycles (100% DOD): 4000
• Warranty: 5 Years

Standard Warranty: 5 Years / 5000 cycles (Whichever comes first) manufacturer's limited carry in warranty (Owing to normal use and installation as per specifications, installation manuals, local laws and regulations)

Depth of discharge: 90%

All Adventure-X Batteries are rated at 1C Discharge Rates - 0.8C Charge Currents

Steel Powder Coated batteries have high current output terminals

All slimline batteries come with Hexsert mounting points
All batteries have bluetooth enabled BMS for monitoring

*Specifications might be subject to change by the manufacturer
